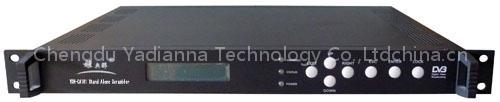

YDN-CA101 Standard-alone Scrambler

YDN-CA101 is a standard-alone scrambler, with DVB simulcrypt scrambling for input code stream,built-in control generator, could send fixed or variable control word scrambling, for transport stream; scrambler inside synchronous and simulcrypt controller,to send control word,access conditions and ECMG exchange co-ordination with CA systems, scrambler control CP rationally,to facilitate decoder decrypt control word and stream is a highly integrated device, which is mainly used in digital television scrambling.

Features

â—†8M bytes caches, anti-burst stream;

â—†63 sets of programs can be scrambled, each program supports 32 elements;

â—†2 channel inputs, real-time hot backup;

â—†Support EPG data insertion;

â—†Commonly used DVB scrambling system description ETR289

â—†Can DVB scramble on specified program or basic transport stream;

â—†Meet the DVB commonly used scrambling algorithm, support simulcrypt model, compatible with 4 conditional access (CA) systems;

â—†Provide comprehensive analysis of MPEG stream function;

â—†Provide TS stream PSI / SI information re-processing functions;

â—†Support rate adaptive, PCR re-adjustment function and re-marking function;

â—†Support remote real-time monitoring of transport streams;

â—†Support automatically switching on input backup function;

â—†Package format: automatically adapt to 188/204 package format;

â—†Through the network system for status monitoring;

â—†PCR correction.
