Listing ID#10210105
ModelYDB-200A drive shaft balancing machine
CategoryBusiness Services

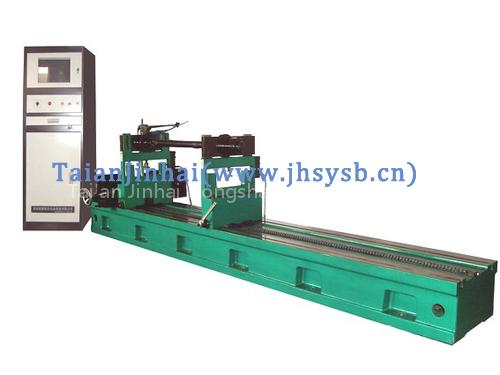

YDB-200A drive shaft balancing machine
Specifications
- Origin
- China
- Price Term
- FOB
Quick answer
YDB-200A drive shaft balancing machine is a Business Services product. Key specs — Origin: China; Price Term: FOB.
Product Description
This series balancing machine is hard bearing, use frequency motor drive, belt drive, two side balance, the test system using RYW(suit to batch balance) and YYW(suit to balance many kinds of workpieces), install industrial control computer and control cabinet. You can only change the clamps to install workpiece, then balance and test every type cars drive shafts, the system test precision highly, good quality, easy to operate.
TYPE | YDB-16A | YDB-50A | YDB-100A | YDB-160A | YDB-200A | YDB-300A | YDB-1000A |
Max.weight(kg) | 16kg | 50 | 100 | 160 | 200kg | 300 | 1000 |
Max.diameter(mm) | 140 | 160 | 180 | 200 | 220 | 240 | 600 |
Max.length between two bearings(mm) | 500 | 1000 | 2100 | 2300 | 2400 | 2600 | 3500 |
Balancing speed(rpm) | 900/1800 | 900/1800 | 900/1800 | 900/1800 | 500-3600 | 500-3600 | 500/1000 |
min. achievableresidualun balance( width="142"> 5 | 5 | 5 | 5 | 5 | 5 | 1 | |
unbvalance reduction ratio(%): | ≥85% | ≥85% | ≥85% | ≥85% | ≥85% | ≥85% | ≥85% |
Motor power(kw) | 0.45/0.55 | 0.8/1.1 | 2/2.4 | 2/2.4 | 4 | 4.5 | 10 |
Adjusting speed type | Frequency | Frequency | Frequency | Frequency | Frequency | Frequency | Frequency |
