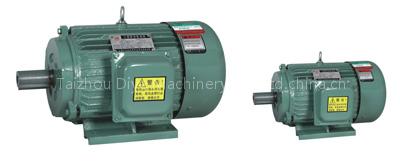

Name: Y801 Motor Pump
Brand: SH HUDA
SKU: Y801

Product description:
This motor used for normal purpose of low-voltage tri-phase rat-cage type. It meets the normal domestic requirements, the range of motor base is 63-315, it is a new national uniform designed product. High efficiency, energy saving, good performance, low vibration, low noise, long life, reliable, easy to maintenance, large running torque. Installation size and efficiency grade meets IEC standard. Isolation grade B, cover protection grade IP44, cooling IC411.
Y series of motor, rated voltage 380V, rated frequency 50HZ, Y connecting approach under 3kw, connecting approach above 3kw.
This motor used for normal mechanical equipment without special requirements, such as agriculture machines, food machines, blowers, pumps, lathes, blenders, air compressors, etc.

Performance Data:

Name	Model	Power (kw)	Voltage (V)	Current (A)	Speed(r/min )	Weight (kg)
tri-phase asynchronous motors	Y801-4	0.55	380/50	1.5	1400	16.5
	Y801-2	0.75	380/50	1.8	2800	17
	Y802-4	0.75	380/50	2	1400	17.5
	Y802-2	1.1	380/50	2.5	2800	18
	Y90S-2	1.1	380/50	2.8	1400	21
	Y90L-6	1.1	380/50	3.2	940	24
	Y90S-2	1.5	380/50	3.4	2800	20
	Y90L-4	1.5	380/50	3.7	1400	25
	Y90L-2	2.2	380/50	4.7	2800	24
	Y100L-6	1.5	380/50	4	940	31
	Y100L1-4	2.2	380/50	5	1400	32
	Y100L-2	3	380/50	6.4	2800	32
	Y100L1-4	3	380/50	6.8	940	35
	Y112M-6	2.2	380/50	5.6	940	41
	Y112M-2	4	380/50	8.2	2800	42
	Y112M-4	4	380/50	8.8	1400	43
	Y132S-4	5.5	380/50	12	1400	65
	Y132S2-2	7.5	380/50	15	2800	66
	Y132M-4	7.5	380/50	15	1400	75
	Y160M-4	11	380/50	23	1400	110
	Y160L-4	15	380/50	30	1400	137
