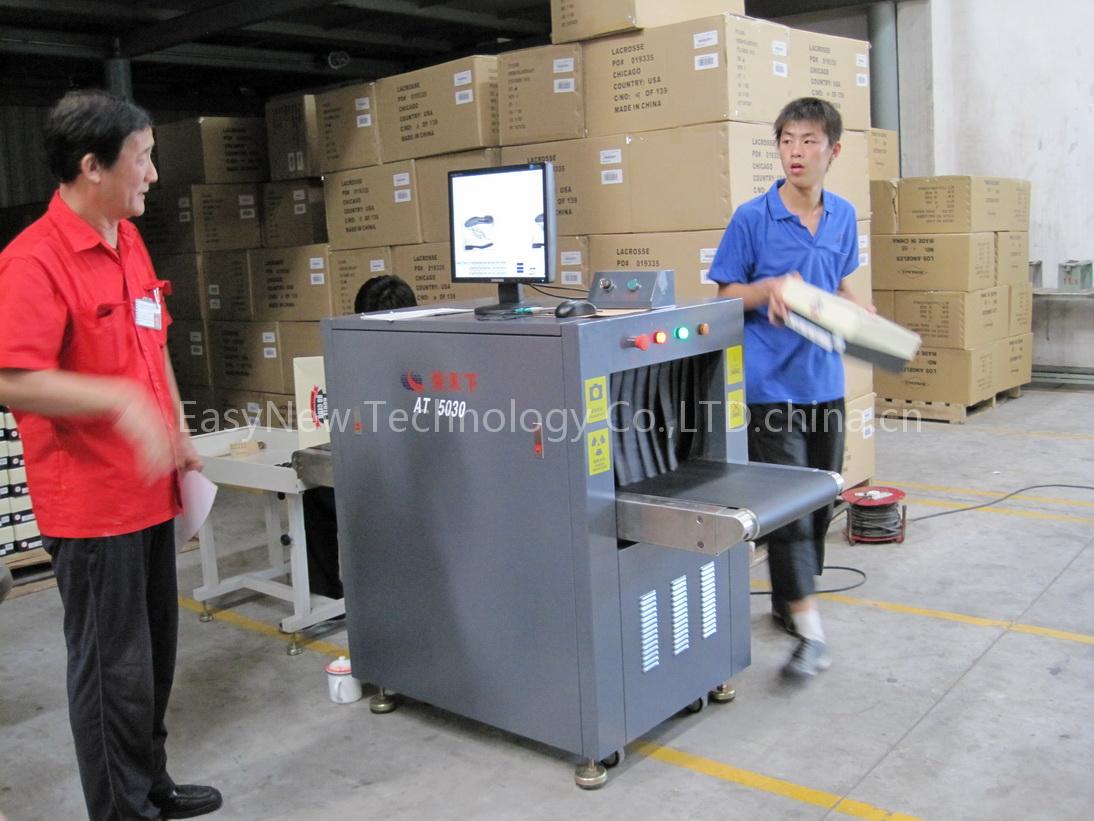

X-ray security checking equipment ST-6550

FEATURE: 1. Alarm by sounds & light::Alarm by sounds and light when conform to condition. 2. Network interface:Could be connect local area network and support multi-terminal check baggage at same times 3. Safety ray:Transmit ray under automatic control, avoids the miss. 4.

Simple operation by mouse:Without keyboard and work table, control by mouse, save space. 5. Turn off by a key control:Turn off the machine only need one step:revolves the key. The equipment automatic security close-down, does not need complex many steps, is simpler. 6. Eagle-eye:Could be expediently observing enlargement area. 7.

Estimate malfunction by self:Automatic estimate malfunction and prompt message, helpful for the maintenance.

TECHNICAL DATA:

Tunnel Size: 650(W)×500(H)mm Conveyor Speed: 0.22 m/s Conveyor Max Load: 170kg Single inspection dosage < 1.5µGy Wire Resolution: 0.0787mm metal line Steel Penetration: 34MM armor plate Film Safety: For ISO 1600 Maximum leakage radiation <0.05µGY/H

X-RAY GENERATOR:

Orientation: Vertically Upward Tube Current: 0.4~1.2MA(adjustable) Anode Voltage: 100~160 KV(adjustable) Angle: 80° Generator cooling/working periods Sealed oil bath with forced air/100%

IMAGE PERFORMANCE SYSTEM:

X-RAY SENSOR: L TYPE PHOTO-DIODE ARRAY DETECTOR, 12BIT

MONITOR: HIGH RESOLUTION 17INCH COLOR LCD DISPLAY

COLOR QUALITY: 24 BIT REAL COLORS

EDGE ENHANCEMENT: OBJECT CONTOUR EDGE IS MORE DISTINCT

SUPER IMAGE ENHANCEMENT: IMAGE DETAIL IS MORE DISTINCT

HIGH PENETRATE STRENGTH DISPLAY: INCREASE BRIGHTNESS OF DARK AREA IN IMAGE TO DISPLAY OBJECT WHICH IS BEHIND HIGH ABSORPTIVITY MASS DISTINCTLY

LOW PENETRATE STRENGTH DISPLAY: INCREASE CONTRAST OF LOW ABSORPTIVITY MASS (EASY TO PENETRATE) TO DISPLAY IT DISTINCTLY

MAGNIFIER: FUNCTION OF PARTIAL ENLARGEMENT

BRIGHTENING/DIMMING: INCREASE BRIGHTNESS OF IMAGE/DECREASE BRICHTNESS OF IMAGE

IMAGE RECURRENCE: DISPLAY PREVIOUS TWENTY IMAGES AND PROCESS ANY ONE OF THEM

IMAGE RESTORATION: RESTORE IMAGE TO INITIAL STATUS AT THE TIME OF STOPPING CONVEYOR

IMAGE STORING: REAL TIME STORE ANY IMAGE AND PROCESS IT IN OPERATION STATUS

MULTI-ENERGY FUNCTION:

MULTI-ENERGY COLOR: DISPLAY ORGANIC MATERIAL FOR ORANGE, DISPLAY INORGANIC MATERIAL FOR BLUE, AND DISPLAY MIXTURE FOR GREEN

HIGH ENERGY/LOW ENERCY: SWITCH TO DISPLAY TWO ENERGY TYPE, HIGH ENERGY STANDS FOR METAL ETC., LOW ENERGE STANDS FOR NONMETALLIC

AUXILIAY FUNCTION FOR DRUGS & EXPLOSIVES: HELP TO DETECT SUCH DANGEROUS MATERIAL AS DRUGS & EXPLOSIVES ETC.

AUDIBLE & VISIBLE ALARM: GIVE SOUND AND VISIBLE SIGNAL WHEN CONFORMING TO CONDITION

OPERATING ENVIRONMENT:

Storage Temperature: -20ºC to 60ºC Operating Temperature: 0ºC to 45ºC Relative Humidity: 20 to 95% non-condensing System Power: 220 VAC (±10%) 50±3HZ Power wastage: 1.1 KW (Max) Noise: <58DB
