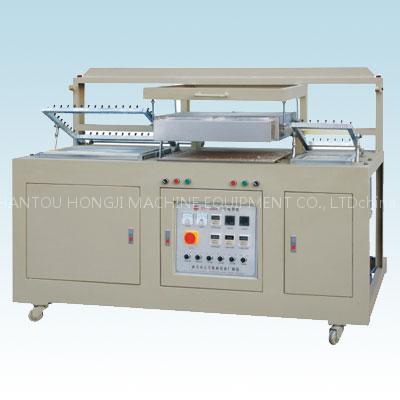

XS-4060 Vacuum Forming Machine

Features:

1. This machine is the new generation product of plastic absorbing machine which is developed according to the thickness and molding depth of PVC bra cups with the diameter range between 224mm to 530mm.

2. The production of this machine has been paid great attention to its technology improvement and its structure has been equipped with advanced operating system with program control.

3. Both clamping devices and heating furnace has been adopted automatic and manual bi-directional regulating system and the embedded ceramic infrared parts to enhance the thermoforming effect.

4. Between its gripper devices,this machine has been equipped with multi-point temperature control system.

Technical parameter:

1. Power supply: 220V

2. Power: 7.5KW

3. Dimension of mould table: 290mm×290mm / 540mm×340mm

4. Dimension of machine: 1900mm×825mm×1700mm

5. Working principle: vacuum suction forming

6. Applicable material: PVC

7. Applicable moulds: ones specialized the suction forming of bra cups

8. Weight: 300KG
