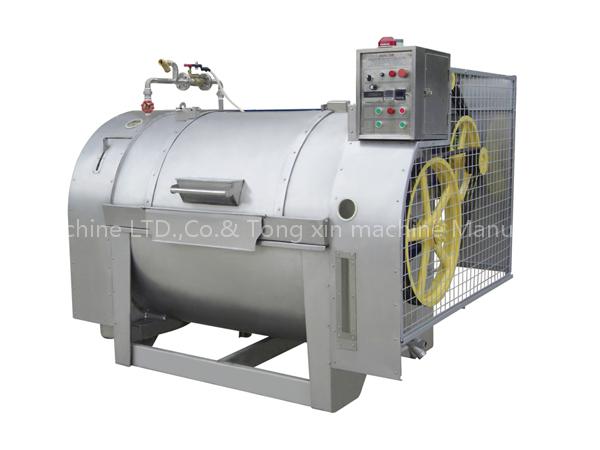

XR-200 Dyeing Washer
Listing ID#10143961
ModelXR-200
CategoryAgriculture
Agriculture

XR-200 Dyeing Washer

Specifications

Brand
Xinxin
Origin
China
Request Quote
Quick answer

XR-200 Dyeing Washer is a Agriculture product. Key specs — Brand: Xinxin; Origin: China.

Product Description

XR-200 Dyeing Washer:
XR series washing and dyeing machine is suitable for jeans and knitting to wash and dye.

XR-200 Dyeing Washer Performance Feature:
Rational structure, easy to operate.
Belt transmission,raising transmission ratio,reducing motor’s load.
Inner drum rolls forward or backward automatically so that fabrics are rolled uniformly.
The machine will be stopped when the machine’s door is opened because it is equipped with safe device.
Direct and indirect heating, guaranteeing dyeing liquid temperature and thickness.
Digital display thermometer, precise temperature.

Customers' Choice:
automatic entry and effluent water
air powered brake
rotational speed can be adjusted at will because of speed governor or frequency control device.

XR-200 Dyeing Washer( Washing And Dyeing Machine) Technical data:

MODELLoading CapacityDrum SizeOverall DimensionTotal PowerWeight
KglbÄ€×L(mm)L×W×H(mm)kwkg
XR-15715Ä€510×6301620×1040×13400.75255
XR-301430Ä€740×4801460×1320×14401.1400
XR-502350Ä€740×8001720×1320×14401.5480
XR-703270Ä€790×9701800×1380×14601.5550
XR-10045100Ä€900×7701820×1540×16402.2630
XR-15068150Ä€1000×10001920×1660×16703710
XR-20091200Ä€1070×12002120×1740×17803915
XR-250110250Ä€980×16102550×1680×167041050
XR-450200450Ä€1100×22203150×1820×18105.51700
XR-550250550Ä€1220×22303200×1950×19907.52000
XR-600270600Ä€1300×22203200×2030×20907.5/112060
XR-800360800Ä€1220×33004380×1950×1990112100
