Listing ID#10061881
ModelXQ5032
CategoryOther Farm Machines
Quick answer

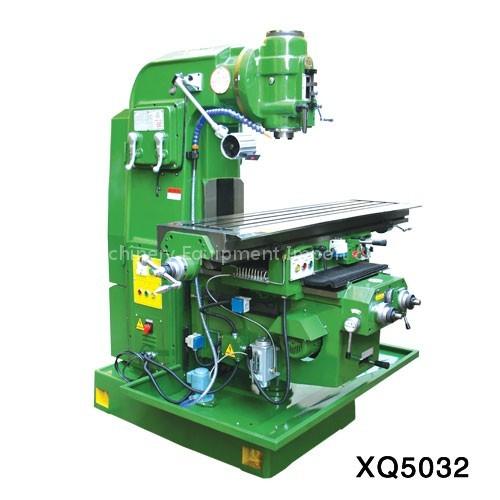

XQ5032 Milling Machine is a Other Farm Machines product. Key specs — Origin: China.
Product Description
Distance between spindle nose and table: 45~415; Distance between spindle and column: 350; Spindle taper: 7:24 ISO50; Spindle bore: 29; Spindle speed: (18 Steps)30~1500; Swivel angle of vertical milling head: ±45o; Spindle travel: 70; Table size: 320×1325; Table travel(Z. Y. Z): 700/880, 255/240/370/350; Travel feed (Z. Y.
Z): 23.5~1180/15~786/8~394; Rapid speed of table (Z. Y. Z): 2300/1540/770; T-slots(NO:/width/pitch): 3/18/70 Maim motor power: 7.5 Rapid motor power:1.5 Overall size: 2530×1890×2380
