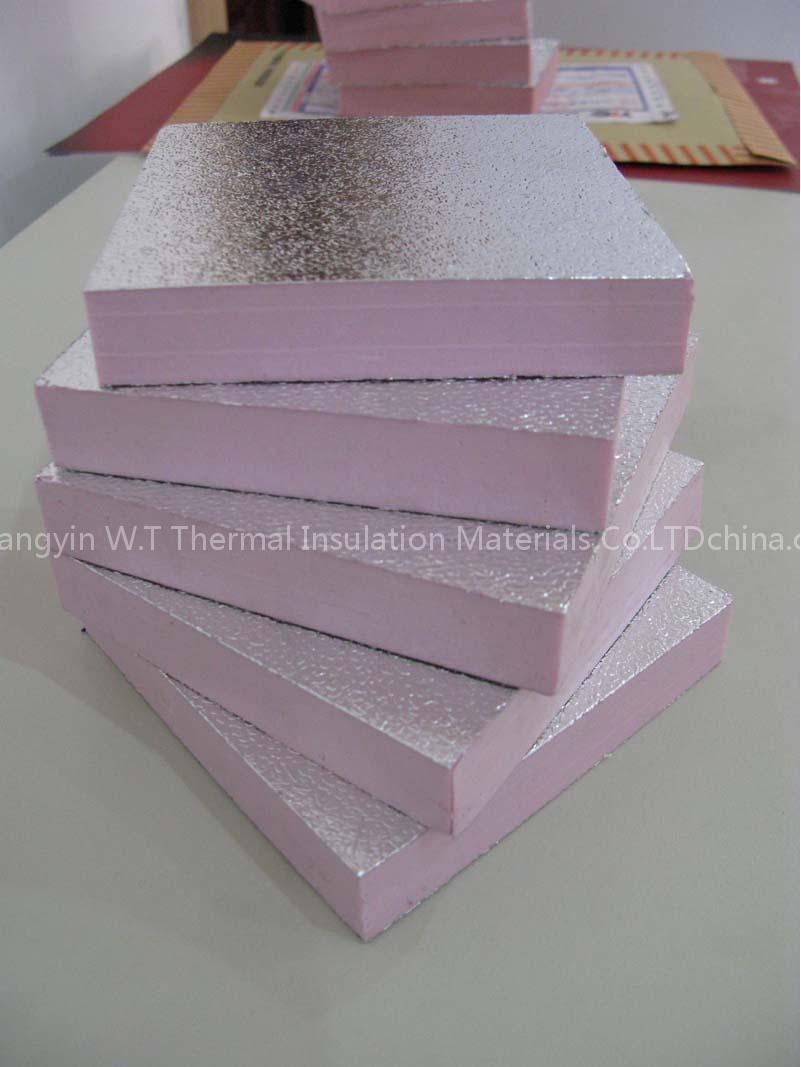

XPS Heat Insulation Board
Specifications
- Origin
- WUXI
- Price Term
- FOB
XPS Heat Insulation Board is a Construction & Real Estate product. Key specs — Origin: WUXI; Price Term: FOB.
Product Description
Extruded Polystyrene Insulation Sheet/Xps Board Item No.: WT2-2A
Material: Double side aluminum foil+Polystyrene(XPS)Foam Thickness of aluminum foil: 40um Total thickness: 20mm
Size: 1.2m(w)x3m(L)
MOQ: 280sheets(1008 square meter) Item
No.: WT2-2B
Material: Double side aluminum foil+FR Polystyrene(XPS) Foam Thickness of aluminum foil: 40um Total thickness: 20mm
Size: 1.2m(w)x3m(L)
MOQ: 280sheets(1008 square meter) Technical Data Sheet of Polystyrene(XPS) Foam Insulation Panel ITEM UNIT SPECIFICATION Density Kg/m3 36~40 Thermal conductivity, 90 days, 10°C W/mK 0.027~0.03 Compressive strength k Pa ≥300 Flexural Strength Mpa 1.06 Tensile strength k Pa ≥300 Water absorption rate % ≤ 1.00 Water vapor permeance Ng/(m.s.pa) ≤3 Dimension Change Rate % ≤ 2 combustion performance ~ Flame Retardancy B1 Temperature limits °C -50 to 75°C Standard Size mm 3000*1200*20
