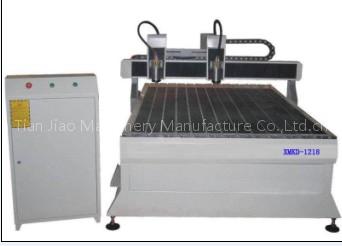

XMKD Crafts working CNC Router

Features: *Several heads can work the same time,and also can seperately working,so it can twice the result with half the effort. *XMKD1218 ballscrew transit,economic stlye model,high features. *Germany high precision ballscrew could minimize the working spaces and offers high working accuracy. *Imported four rolls steel leaner orbits,self lubricate slippers to make sure get the mechanical force in all-directional evenlv. *Stop point continue processing mode could continue to work from the stopped work point next time. *Gantry moving work mode,the machine structure is whole casting,it is stable,everlasting work without transfiguration.

Applications: *Woodworking industry:Classic red wood furniture processing. *Advertising industry:Advertising billboards,signs making,acrylic cutting,plastic moulds making,other acvertising materials making. *other industries:all kinds of photo engraving,3d working,widely used in crafts and gifts making also. *can be used:aluminum cutting industry ,copper engraving ,and nonmetallic moulds,like:scagliola,sandstone,plastic board,PVC pipe,artificial stone,MDF and other wood sheet etc.

Parameter: Model:XMKD1218 X Working area:600mm*2 Y Working area:180mm Z Working area:150mm Max travel speed:12000mm/min Max working speed:10000mm/min Processing precision:0.03mm Repositioning precision:0.05mm Table stucture:T slot table Working Command:G code*.Uoo*.mmg*.plt X,Y,Z stucture:Zballscrew Self-consuming power(not include the spindle power):0.7KW Working voltage:AC220V50Hz Spindle power:1.5KW water cooling Spindle rotating speed: 0-24000rpm/min Drive motor:Step motor Operation system:DSP control system Net weight:750kgs Gross weight:850kgs
