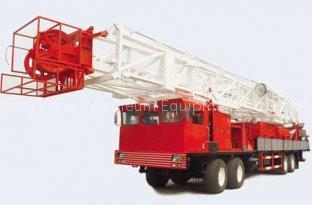

XJ350 Workover rig
Specifications
- Origin
- China (Mainland)
- Price Term
- FOB
XJ350 Workover rig is a Special Transportation product. Key specs — Origin: China (Mainland); Price Term: FOB.
Product Description
1. XJ250~XJ1000 workover rig
2. ZJ 10~ZJ40 truck-mounted drilling rig
3. Applied API monogram on main equipment
1. Products features
102.69 ft (31.3m) double section mast, hydraulically raised and telescoped.
8×8 full drive chassis for XJ350 single-drum rig.
10×8 chassis for XJ350S double-drum rig.
Simple operation platform hanged on the rear is available.
A rod hanger is available.
2. Main Parameters
Item | Model | XJ350 |
1 | Service depth(2-7/8UE tubing) ft(m) | 13120 (4000) |
2 | Workover depth(2-7/8drilling pipe) ft(m) | 10500(3200) |
3 | (3-1/2drilling pipe) ft(m) | 8530(2600) |
4 | (4-1/2drilling pipe) ft(m) | |
5 | Nominal hook load lb(kn) | 134880(600) |
6 | load lb(kn) | 202320(900) |
7 | Wireline dia/effective line in(mm)/n | Φ1(Φ26)/6 |
8 | Max.lifting speed of hook ft/s(m/s) | 4.33(1.32) |
9 | Overall dimensions in traveling conditionft(m) | 56.43×9.19×13.71 (17.2×2.8×4.18) |
10 | Weight lb(kg) | 83776 (38000) |
11 | Power system | CAT-3406B/C11 |
12 | Engine power hp(kw)(2100r/min) | 360 (269)/385(287) |
13 | Hydraulic transmission | HD4700 OFS |
14 | Chassis driving type | 8×8/10×8 |
15 | Min.turning diameter ft(m) | 98.43 (30) |
16 | Min.ground clearance in(mm) | 13.39 (340) |
17 | Approachg departure angle/Max.grade ability | 36°/18°/32% |
18 | Drawworks |
