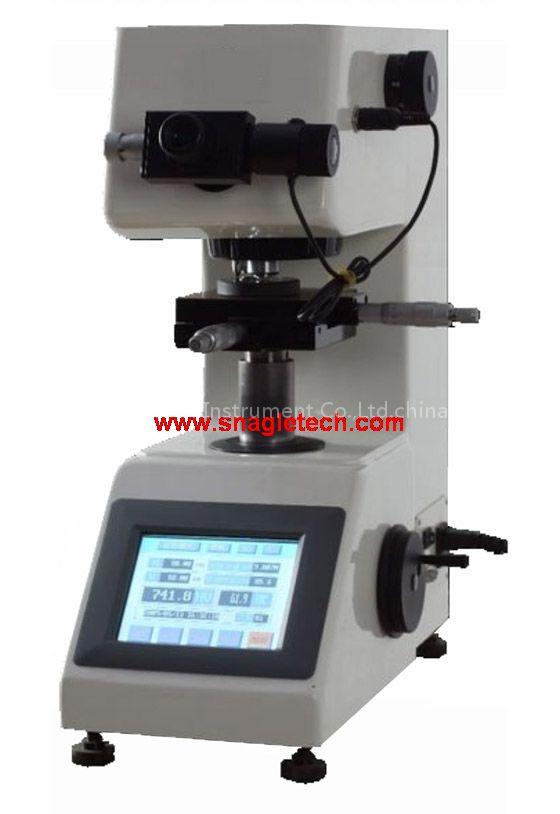

Name: XHV-1000 Digital Micro Vickers Hardness Tester
SKU: XHV-1000

made with a unique and precise design in the fields of mechanics, optics and light source is able to produce a clearer indentation and hence a more precise measurement. By means of a 20 × lens and a 40 × lens the tester has a wider measurement field and a broader usage range. With an automatically turning device ( the automatically turning turret ), the op eration has become easier; and with a thread interface, it can be linked to a digital camera and a CCD Video—camera . It is the first tester that has adopted the touch and work LCD screen, thus making the operation more humanized. The tester has such features as the direct reading of the measurements, the easy change of the hardness scales, the reservation of the data, the printing and the linkage with RS232 interface. It is the representative of the products of the same kind in the country.

Applicable scope:

Ferrous metals, non-ferrous metals, IC thin sections, coatings, ply-metals;

Glass, ceramics, agate, precious stones; thin plastic sections;etc

Hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.

Parameter:

1. Test Forces

(0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80) N
(10, 25, 50, 100, 200, 300, 500, 1000) gf

2.Carriage Control: automatic ( loading / holding-up of the load / unloading )

3. Amplification of the Microscope: 200 ×, 400 ×

4. Dwell Time of the Test Force: (5-60)s

5. Min. Graduation Value of the Testing Drum Wheel: 0.0625um

6. Testing Field: 1HV—2967HV

7. Dimension of the XY Table: 100 × 100 mm

8. Movement Field of the XY Table: 25 × 25mm

9. Max. height of the specimen : 70 mm

10. Max. width of the specimen : 95mm

11. Output : installed with a printer and a RS232 serial interface

12. Light source : cold light source

13. Power Supply : 110V/220V,60/50Hz

14. Dimension: (425 × 245 × 490)mm

15. Weight: 30Kg

Main Accessories

XY-stage test table

Thin specimen test table

Fork-shaped test table

Fine wire test table

Adjustable screw

10×Digital Micro Lens

Micro Vickers hardness blocks (high medium)

Gradienter
