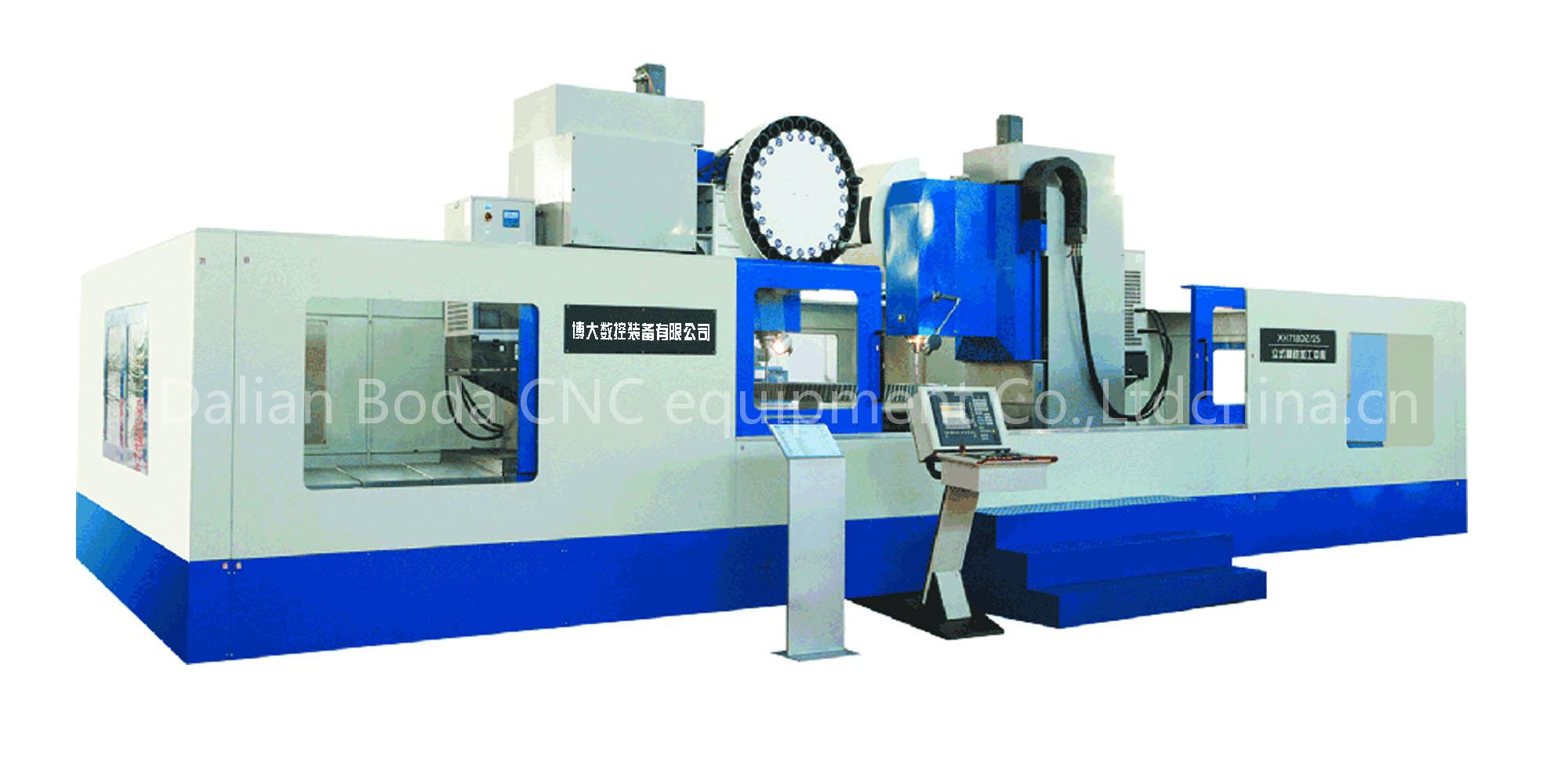

XH718DZ-17 drilling cutting machine center
Specifications
- Brand
- Boda
- Origin
- Dalian,China
- Price Term
- FOB
XH718DZ-17 drilling cutting machine center is a Other Farm Machines product. Key specs — Brand: Boda; Origin: Dalian,China; Price Term: FOB.
Product Description
Rotary table diameter | 1700 mm |
Max load | 0.5 t |
T-slot | 28 mm / 12 ray lines |
Axis travel (Y1 Y2/Z1 Z2/B) | 850/600/360 degree |
Distance between 2 spindles | 600-2500 mm |
Main spindle end to table surface | 600-1200 mm |
Main spindle center to vertical column guide surface | 1000 mm |
Main spindle speed range (Infinite) | 30-6000 rpm |
Main spindle taper hole | ISO50 (DIN69872A) |
Feed speed range (Infinite) | 1-10000 mm /min |
Rapid shift (Y1 Y2/Z) | 10000 mm/min |
Tool taper bar type | BT50 |
Pull stud type | L50 (1 type) |
Main spindle motor power | 22 kw |
Feed motor torque (Y1 Y2/Z1 Z1/B) | 30 Nm |
Plate tool magazine capacity | 24 position |
Tool max diameter | 200 mm |
Tool max weight | 18 kg |
Tool max length | 350 mm |
Tools exchange time | 3 sec |
Lubrication pump power | 0.04 kw |
Mini setting unit | 0.001 mm |
Positioning | 0.035 mm |
Repositioning | 0.02 mm |
Weight of machine tool | 4.5 t |
CNC controller | Siemens 840D |
