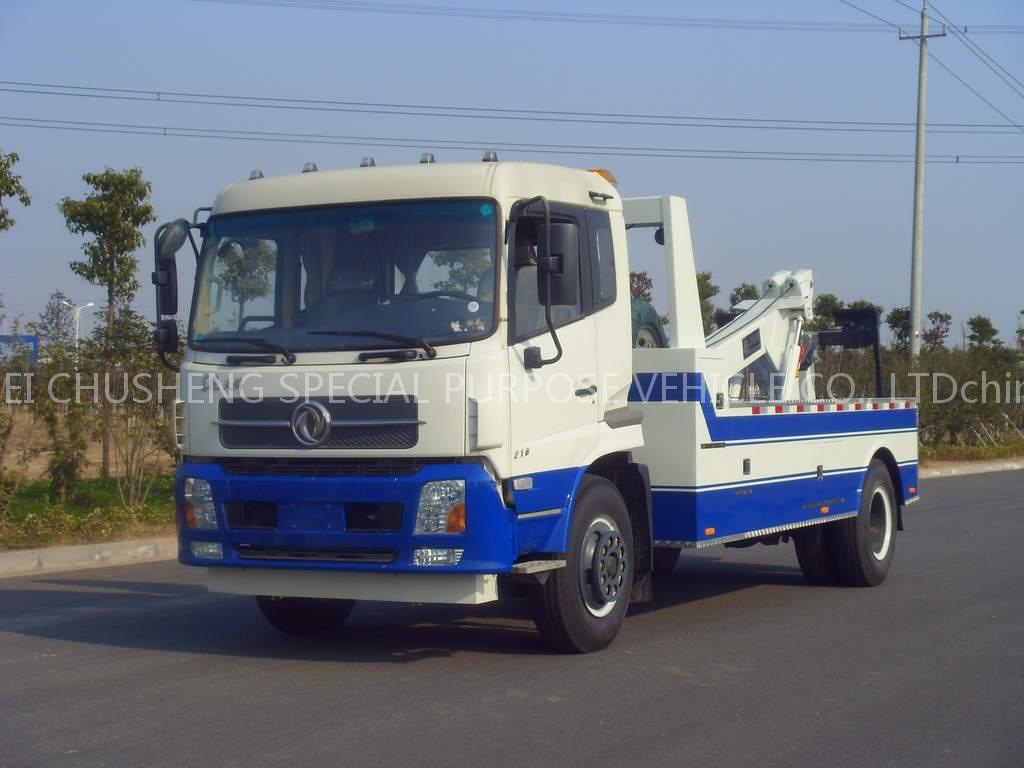

Wrecker

CSC, chassis , 4*2 drives, GVW 7.5 T, Rating pulling capacity 3 T, CY4102 engine, 120 HP, and Max torque 245 NM, Dongfeng 6 shift transmission, 2.5 T front axle, 6 T rear axle, 7.50-16 tire, with A/C.The lifting mechanism lies in the back of the cab and can circumvolve 270°. Its boom can be telescopic and change amplitude.

Its Maximum slinging loads is 1.08t and the Maximum Slinging height is 5.1m and the maximum working radius is 3.6m.

Its Maximum slinging loads is 1.08t and the Maximum Slinging height is 5.2m and the maximum working radius is 3.6m.It is used to deal with motorcycles such as sling the motorcycles which take place accident, fail to work and violate the rules and regulations to the shipment platform of the Hoisting mechanism lies in the Tail of vehicles and is independent with lifting mechanism; the lifting of the arm adopts four-bar linkage with compact structure, and the hoisting adopt hydraulic driving bracket which can hold tire automatically.

The arm can lift, flex, collapse and easy to operate. It is the most convenient and advanced hoisting mechanism at home and abroad. Open circuit hydraulic system. The imported hydraulic parts such as , multi-way valve and balance valve are famous international brands.

The cylinder adopts high-quality imported seal and Cylinder Barrel and the hydraulic system work reliably. Electric control system supplies many kinds of warning lamp, indicating signal light and 3 night-work lighting lamps for .

The car-body and toolbox are integrated and on the top of the wrecker is the shipment platform for motorcycles. the motorcycles can be slanted to the platform by the lifting mechanism and be pushed to the platform directly by using special designed inclined gangplank.

The design of the car-box suits for the integral vehicle and make the Whole Sculpt beautiful. To pull the vehicle whose tire can not move, for example, the vehicle which parks violating rules and regulations and whose Parking Brake is difficult to loosen, the has Four-wheel assistant dolly. It has hand-tailored lifting cable for motorcycles.

This kind of cable makes sure that the motorcycles can be lifted safely. And to fix the motorcycles it also has robe to bind motorcycles. The control handle in the hosting and Drawing Mechanism is in the back Control Cubicles of the right side of the and adopt Uni-lateral hand control.

The lifting mechanism can adopt unilateral hand control and bilateral Wired Remote Control. Hand control handle lies in the front Control Cubicles of the left side of the Wrecker. Wired Remote Control system set instant Sockets in the right and left toolbox of the Wrecker.

In this way, the Remote Control button box can be connected in both sides quickly to realize bilateral control.
