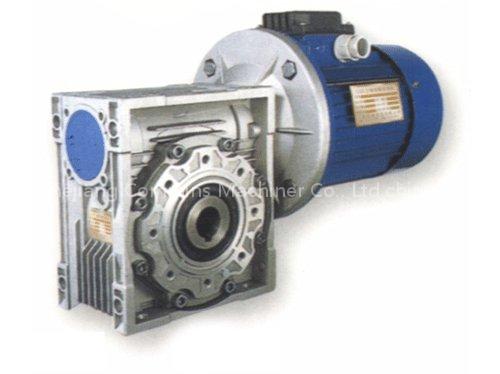

Worm Speed Reducer(RV)
Specifications
- Brand
- Commins
- Origin
- China (Mainland)
Quick answer
Worm Speed Reducer(RV) is a Speed Reducers product. Key specs — Brand: Commins; Origin: China (Mainland).
Product Description
Specification of Worm Gear Reducer:
| meter | Serial Number | NMRW | worm reductor with input flange |
| NRW | input worm reductor | ||
| PCRW | module worm reductor with preposing bevel wheel | ||
| DRW | Jonit double worm reductor | ||
| Number of base | 030 | Specification of base(central distance 30) | |
| 040 | Specification of base(central distance 40) | ||
| 050 | Specification of base(central distance 40) | ||
| 063 | Specification of base(central distance 63) | ||
| 075 | Specification of base(central distance 75) | ||
| 090 | Specification of base(central distance 90) | ||
| 110 | Specification of base(central distance 110) | ||
| 130 | Specification of base(central distance 130) | ||
| 030/040 | Specification of DRW joint base | ||
| 030/050 | Specification of DRW joint base | ||
| 030/063 | Specification of DRW joint base | ||
| 040/075 | Specification of DRW joint base | ||
| 040/090 | Specification of DRW joint base | ||
| 050/110 | Specification of DRW joint base | ||
| 063/130 | Specification of DRW joint base | ||
| 063/040 | PCRW base(PC063+NMRW040) | ||
| 063/050 | PCRW base(PC063+NMRW050) | ||
| 063/063 | PCRW base(PC063+NMRW063) | ||
| 071/050 | PCRW base(PC071+NMRW050) | ||
| 071/063 | PCRW base(PC071+NMRW063) | ||
| 071/075 | PCRW base(PC071+NMRW075) | ||
| 071/090 | PCRW base(PC071+NMRW090) | ||
| 080/075 | PCRW base(PC080+NMRW075) | ||
| 080/090 | PCRW base(PC080+NMRW090) | ||
| 080/110 | PCRW base(PC080+NMRW110) | ||
| 080/130 | PCRW base(PC080+NMRW130) | ||
| 090/110 | PCRW base(PC090+NMRW110) | ||
| 090/130 | PCRW base(PC090+NMRW130) | ||
| Transmission ratio | 5,7.5,10,15,20,30, 40,50,60,80,100 | NMRW,NRW moderating ratio(i=5-100) | |
| 72.6,75,79.3,90,95.1, 96.8,120,121,126.8, 145.2,150,158.5,180, 190.2,193.6,240,242, 253.6,300,317 | PCRW moderating ratio(i=72.6-317) | ||
| 100,150,200,250,300, 400,500,600,750,900, 1200,1500,1800,2400, 3000,3200 | DRW moderating ratio(i=100-3200) | ||
| Input/Output Structure | worm | E | end of worm |
| worm wheel | DZ | uni-directional | |
| SZ | bi-directional | ||
| output flange | F | equipped short output flange | |
| FL | equipped long output flange | ||
| Torque arm | A | equipped torque arm | |
| Allocation | Motor | xxB5,xxB14 | number of base and type of structure |
| Orientation | B3,B6,B7,B8 | horizonal | |
| V3,V6 | vertical |
Label:
Parameter:Serial Number, number of base, moderating ratio
I/O: worm, worm wheel,output flange
Allocation: Motor, Orientation
