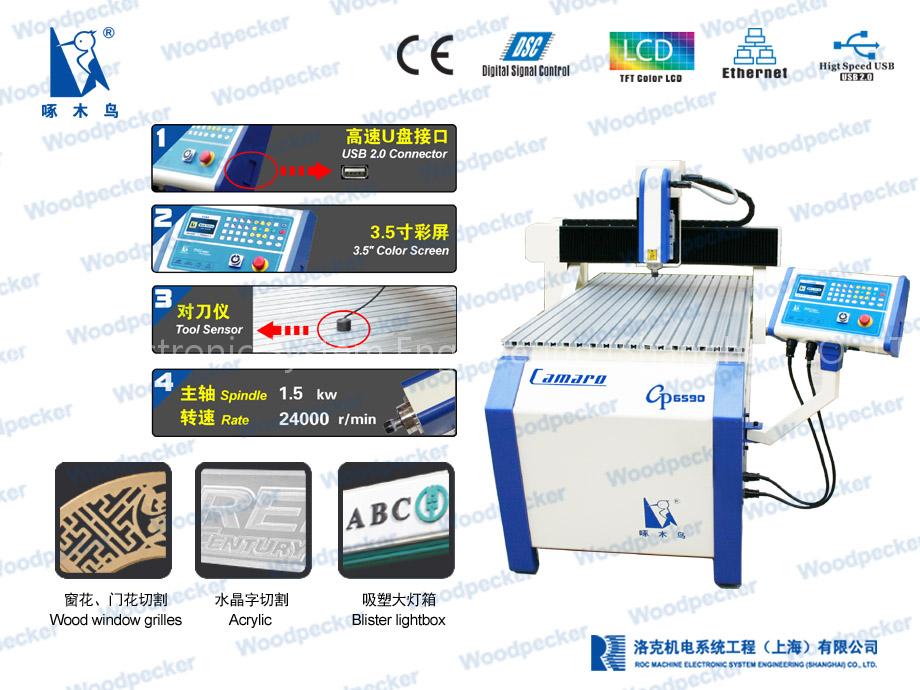

Woodpecker CNC router / sign engraving machine

Woodpecker CNC sign making machine / CNC router CP-6590 *Application: Engrave advertising sign, acrylic letter, architectural model, relievo, badge, mould etc. *Applicable materials

Wood: MDF, plywood etc.

Plastic: acrylic, double color sheet, PVC, plexiglass, ABS etc. *Features

1. Step motor, ball screw, 3.5" DSC controller, 1.5KW air-cooled spindle

2. Multiple functions: resume when restart, oblique cutting, any-line restarting, various preset modes and customize mode for option

3. Compatible with CAD/CAM software, such as Type3 /Artcam / Mastercam /Cimatron /Fastcam /Ucancam(Wentai) etc.

4. Optional parts: 0.5KW floating spindle, vacuum table, vacuum pump, dust collect head, dust collect pump etc.

5. Warranty: 1 year for machine, 6 months for spindle. *Parameters

Repeat positioning precision: ±0.02 mm

Spindle: 1.5 kw

Spindle rate: 24000 rpm

Cutting tool diameter: Φ3.175/Φ6 mm

Max moving speed: 7.2 m/min

Working table size: 720 x 1270 mm

Max travel range: 650 x 900x 110 mm

Machine size: 1120 x 1520x 1400 mm

Power source : AC220V±10% 50HZConsumption: 2.5 kw

Weight 200 kg nbsp;Woodpecker CAMARO series CNC router have following modles: CP-6590, CP-1208, CP-1212, CP-1318, CP-1325Y, CP-1530Y; ROC MESE manufactures: CNC router, mold engraving machine, plasma cutting machine, foam cutter, flatbed UV printer, CNC notching machine, key making machine etc. Various configuration, sizes and customize service are available. If any demand, please feel free to contact us.
