Wood CNC Router
Listing ID#10218837
ModelQL1325
CategoryFurniture

Wood CNC Router

Specifications

Brand
QL
Origin
China
Price Term
FOB
Request Quote
Quick answer

Wood CNC Router is a Furniture product. Key specs — Brand: QL; Origin: China; Price Term: FOB.

Product Description

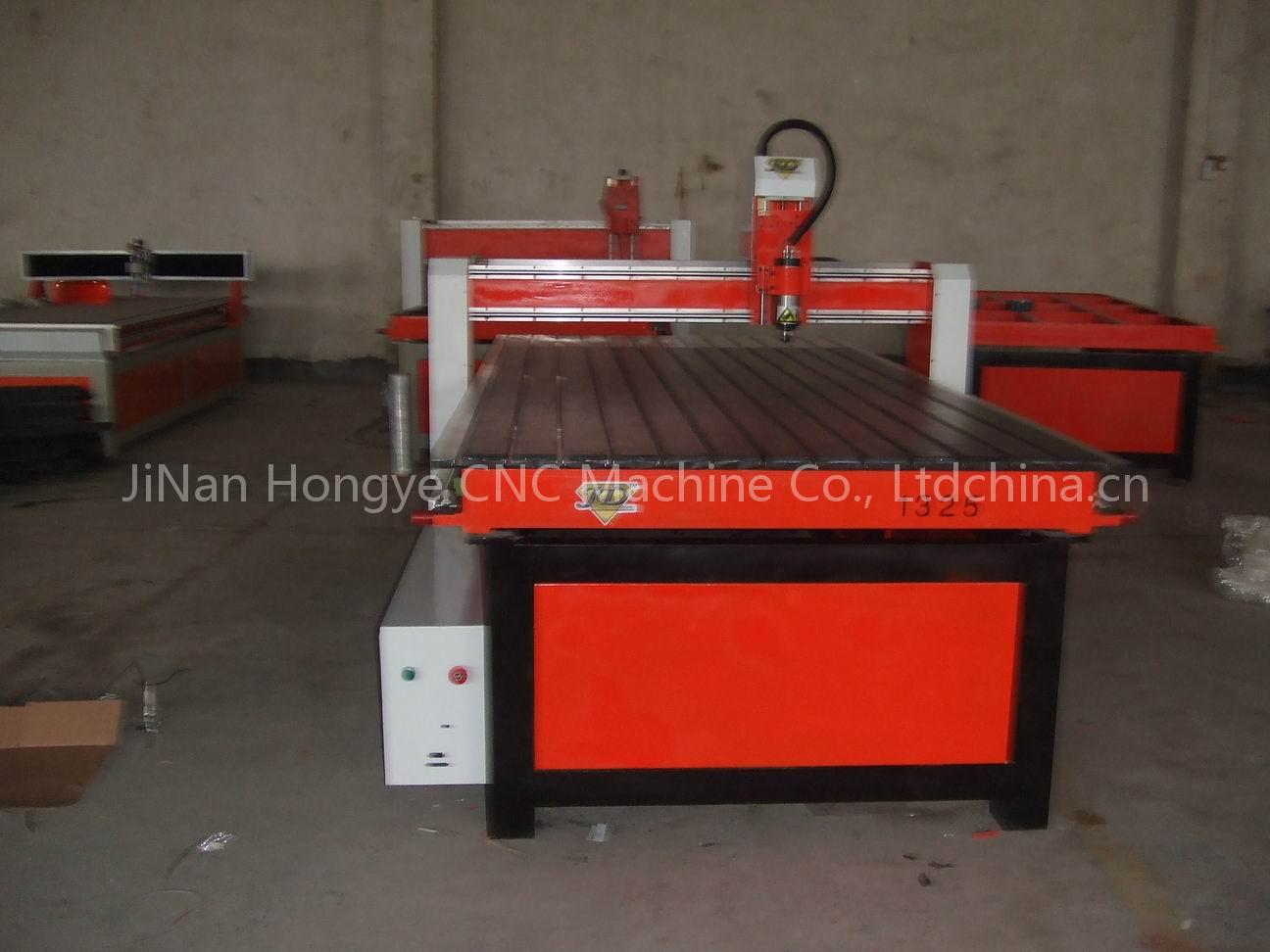

Wood CNC Router QL1325
Characteristics:Woodworking series is the Super Star in the woodworking industry in the use of the large signs for a major production, the characters a high-speed cutting machines. 1, billboard industry: characters cutting, plate production, LED / neon channel, literal-hole cut, blister Lightbox mold production.
2, spindle running software control, automation strong.
3, speed, high efficiency, air speed-up to 8 m / min above.
4, spindle power, steel and good.
5, dual-motor drive, a unique dual-axis drive tooth strength of the large, smooth transmission, high-speed operation of the guarantee is not a long time deformation, jitter.
Performance Parameter:
Machine ModelQL1325-I
X.Y working area1250*2500mm
Z working area>120mm
Table1440*3000mm
Operating speed8m/min
Carving speed6m/min
Resolution0.01mm
Repeat positioning accuracy0.05mm
Feeding height120mm
CommandG code*.u00*.mmg*.plt
Surroundings for softwarewindows98/2000/xp
Power(not exclude spindle)1500w
Work voltageAC220V/50Hz
Spindle power2.2KW
Spindle rotating speed24000rpm/min
Work ModeSteper
