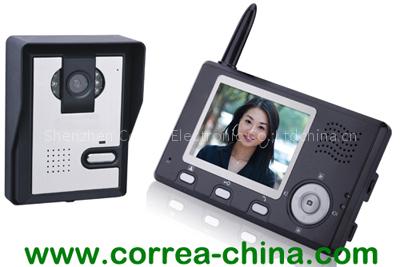

Wireless Video Intercom Door Phone

Color Hands-Free Digital Wireless Video Door Phone System

Primary Function: Home or Office Audio and Video Portable Intercom System

Handheld Receiver Specifications

Screen - 3.5 inch TFT LCD monitor

On Screen Indicators - Monitor State, Lock/Unlock, Talk, Take a Picture, Increase Volume, Decrease Volume, View Last Picture, View Next Picture, Signal Bar, Battery Bar

Power Source: Internal Battery (3.7V 1350 mAh Rechargeable Li-ion)

Receiving Frequency - 2.4GHz

Wireless transmitting range - approx. 250 meters (ideal conditions)

Onboard Buttons/Indicators - Unlock Door, View Monitor. Talk Button, MIC, LED Indicator, Mini USB Input, Speaker, Volume -/+, Brightness control -/+, Antenna, Power ON/OFF Switch

Dimensions: L:102 x W:134 x H:55 (mm)

Entry Guardian Transmitter Specifications

Camera Sensor - CMOS

Light Source - Six (6) Infrared LED lights

Power Source - AC Adapter (100-240V) 50/60Hz

Transmitting Frequency - 2.4GHz

Wireless receiving range - approx. 250 meters (ideal conditions)

Onboard Buttons/Indicators - Call Button, 6 LED Lights. MIC, Speaker, LED Indicator, Power ON/OFF Switch

Dimensions: L:127 x W:95 x D:36 (mm)

Certification: FCC, CE , ROSH

Product Notes

Easy to install and use!

The portable receiver charges with the adapter included or through a USB connection to your PC computer

Transmitting unit comes with six infrared LED lights to allow seeing who is at your door even in darkness!

To view captured photos, press and hold down the photo button for 3 seconds, then navigate photos with the arrow keys

Package Included

1 x Outdoor camera

1 x Power adapter for outdoor camera

1 x Indoor monitor

1 x Power adapter for Indoor monitor

1 x Lithium battery

1 x Screws and expansion bolts for the installation of outdoor camera

1 x Wiring of electric lock(Optional)

1 x User manual
