Wireless Parking Sensor System

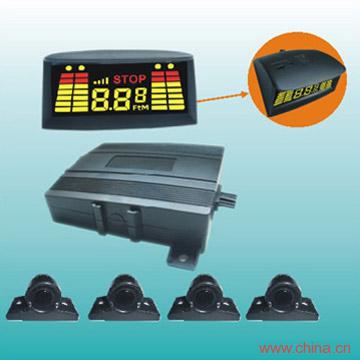

Model No.:PS-LE4W36-4 Product Origin:China Brand Name:ultronix Price Terms: Payment Terms: Certification:E-Mark, CE, RoHS Description:This model consists of:1) 1 waterproof ECU with wireless emitter.2) 4 waterproof ultrasonic sensors.3) 1 warning unit: LED display with wireless receiver.4) Accessories: User's manual, double-sided adhesive tape and screws.Features:1) Optimized design for use in long vehicle such as buses, trucks, caravans or motorhomes:a) Easy installation based on long distance and reliable wireless transmissiontechnologyb) Note: mount the waterproof sensors on the bumper and the waterproof ECU on the chassis with an ordinary drill and a normal screw-driver, connect the ECU's power cable to the reverse light, then connect the display's power cable to the vehicle's ACC.

When reverse gear is engaged, the system will be activated automaticallyc) With teach function, enabling the warning unit to work with any ECU/sensors of the same model installed in different trailersd) Waterproof ECU and waterproof sensors can work in all weather conditionse) All types of ultrasonic sensors are available for this system, so this model can be used in all vehicle modelsf) About wireless data transmission:i) Uses fully integrated RF module based on EZ radio technologyii) Highly sensitive, stable and accurate FSK modulationiii) Working frequency: 433.868 or 915MHz for option iv) Low radiation and highly interference resistant in conformity withFCC and ETSI standardsv) Data-emitting power: 6dBm (3.98mW)vi) Receiving sensitivity: -106dBm (BER 1.E-3)vii) The use of reliable communication agreement ensures the correct data transmission2) Powerful functions:a) The minimum detection and display distance is 22cm, a person can be detected when standing within 1.3 to 1.7m behind the vehicleb) The elegant jitter-free LED display shows the distance with 0.01m accuracy.

Shows the direction or location of the obstaclec) The speaker built in the display outputs a dulcet alarm at 800Hz, and itsvolume is adjustable at 3 levelsd) The middle sensors start audible warning from 1.7m, while the corner sensors start audible report from 1.0m
