Wireless Electricity Power Energy Monitor is a Auto Meter product. Key specs — Origin: China.
Product Description
Simple instruction: 1. Our wireless uni-directional electrical energy saving monitor adopts 433MHz wireless transmission technology and can be used to monitor the energy-consuming conditions of one single energy-consuming unit or one summary port that covers many power-consuming units.
The monitor displays the power consuming status and the carbon dioxide produced in real time and forecast the electrical power cost of one hour, one day or one month for the monitored object. It also has the functions of time display and temperature display.

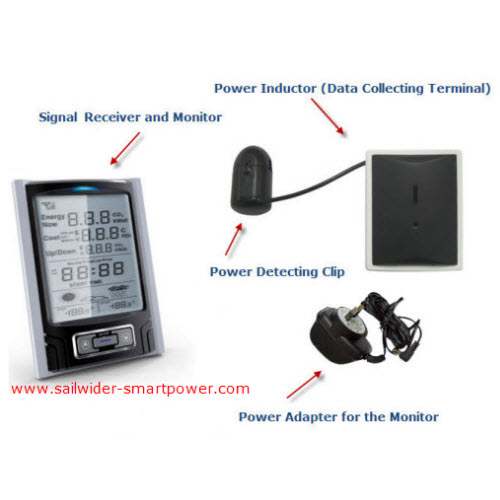

2. The system is simply consisted by one monitor and one power inductor with detecting clip. The said power inductor can be replaced by our power inductor plug or multi-socket plug adapter.
3. For installation, just stick the power inductor / sensor (data collection terminal) on the wall near the monitored object and let the power detecting clip clamp the null line or the live line of the monitored object, just as below photo is displaying.
After registration of the inductor with the monitor, the system begins to work and start to monitor the power consuming conditions of the monitored object in real time.
To make the Cost (per hour, per day and per month) to display correctly on the screen, certain settings need to be done first regarding the power charge rate and currency after the monitor is powered on.
4. To use the power detecting clip, the rubber cover of the wire need to be stripped off first. If the power detecting clip is not applicable, our special multi-socket plug adapter can also be used as an power inductor (data collection terminal). Just use the multi-socket plug adapter to provide the power to the monitored object and the system can work as well.
Specification: Monitored Power Range: 5W--2.5KW Remote Monitor Distance: 200m (outdoor), 30-80m (indoor) Operating Frequency: 433MHz Temperature Accuracy: <3 centi-degree Up/Down Power Range: >30w Operating Temperature Range: -20~60 centi-degree Power DC: 3V CO2 Delivery Capacity: Estimated as 0.54kg/kw Time Display Mode: 24 hours
