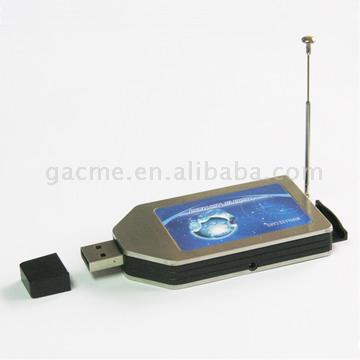

Wireless EDGE/GPRS/GSM Modem
Specifications
- Origin
- China (Mainland)
Wireless EDGE/GPRS/GSM Modem is a Telecommunications product. Key specs — Origin: China (Mainland).
Product Description
Model No.:GW-G400 Product Origin:China Brand Name: Price Terms: Payment Terms: Certification: Description:Technical specifications: 1.
Quad-band EGSM850, EGSM900, GSM1800 and GSM190:Compatible with GSM 850MHz band: Transmit, receive: 824-849MHz and 869-894MHzPower: 500mW (+27dBm) / 2W (+33dBm)GSM 900 MHz band:Transmit, receive: 880-915MHz, 925-960MHzPower: 500mW (+27dBm) / 2W (+33dBm)DCS 1,800MHz band:Transmit, receive: 1,710-1,785MHz, 1,805-1,880MHzPower: 400mW (+26dBm) / 1,000mW (+30dBm)PCS 1,900MHz band:Transmit, receive: 1,850-1,910MHz, 1,930-1,990MHzPower: 400mW (+26dBm) / 1,000mW (+30dBm)2.
EDGE multi-slot class 12 (up to 4TX, 4RX, 5 total), up to 216kbps3. External removable antenna.4. Control via AT-command (GSM 07.07, 07.05 and enhanced at commands)5. Interface: PCMCIA6. SIM application toolkit7. Voltage range 3.4V-4.5V8. Low power consumption9. Size: 88 x 54 x 5 mm; weight: 40g10. Operation temperature: -20-+60°C 11.
Restricted operation temperature: -25-20°C and +60-+70°C
