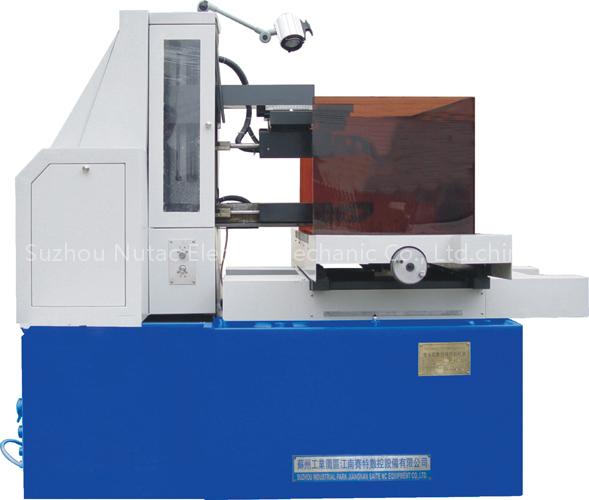

Wire cut EDM machine is a Other Plastic & Rubber Machinery product. Key specs — Origin: China.
Product Description
CRT display | 15" super VGA colour monitor |
Control system | CNC |
PC | Micro computer (Industrial PC) |
Axis control | 4-Axis (X, Y, U, V) |
X, Y axis guide ways | 0.001 mm |
Resolution | 0.001 mm |
Wire electrode dia | 0.18 mm (std), 0.15 mm, 0.12 mm & 0.10 mm (optional) |
Interpolation | Linear & Circular |
Programming | Incremental |
Least input increment | 0.001 mm |
Least command input | ± 0.001 mm |
Max. programmable dimn. | 999.999 |
Max. block display | 999 |
Data input / output system | USB port, regular key board and mouse; can read AutoCAD DXF |
Input power supply | 3 Phase, 415 volts, 50 Hz with Neutral and Earth |
Total machine load | 1.5 KVA |
Display | Graphic display of part showing wire position |
Processing & data entry | New programs can be entered while cutting previous program |
Auto stop | Auto shut off at the end of program |
Di electric fluid | Soft water (D.M. water) + gel |
Di electric tank capacity | 55 Lts. |
