Listing ID#10057875
ModelXY04-04
CategoryFasteners

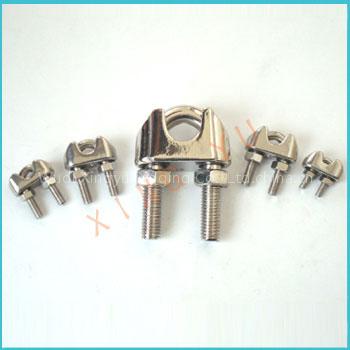

Wire Rope Clamps DIN741
Specifications
- Brand
- 星宇
- Origin
- China
- Price Term
- FOB
Quick answer
Wire Rope Clamps DIN741 is a Fasteners product. Key specs — Brand: 星宇; Origin: China; Price Term: FOB.
Product Description
| ART.NO | SIZE | A | B | C | D | E | F | G | |
| mm | in | mm | mm | mm | mm | mm | mm | mm | |
| XY04-0401 | 3 | 1/8 | 9 | 10 | 12 | 4 | 10 | 21 | 16 |
| XY04-0402 | 5 | 3/16 | 11 | 11 | 13 | 5 | 10 | 23 | 19 |
| XY04-0403 | 6 | 1/4 | 13 | 12 | 15 | 5 | 11 | 26 | 23 |
| XY04-0404 | 8 | 5/16 | 16 | 14 | 19 | 6 | 15 | 30 | 28 |
| XY04-0405 | 10 | 3/8 | 19 | 18 | 22 | 8 | 17 | 34 | 34 |
| XY04-0406 | 11 | 7/16 | 20 | 19 | 22 | 8 | 18 | 36 | 36 |
| XY04-0407 | 13 | 1/2 | 24 | 23 | 30 | 10 | 21 | 42 | 45 |
| XY04-0408 | 14 | 9/16 | 25 | 23 | 30 | 10 | 22 | 44 | 47 |
| XY04-0409 | 16 | 5/8 | 29 | 26 | 33 | 12 | 26 | 50 | 51 |
| XY04-0410 | 19 | 3/4 | 32 | 29 | 38 | 12 | 30 | 54 | 63 |
| XY04-0411 | 22 | 7/8 | 37 | 33 | 44 | 14 | 34 | 61 | 71 |
| XY04-0412 | 26 | 1 | 41 | 35 | 45 | 14 | 37 | 65 | 81 |
| XY04-0413 | 34 | 1 1/4 | 52 | 42 | 55 | 16 | 50 | 80 | 104 |
High Polished Stainless Steel - AISI 316/304
