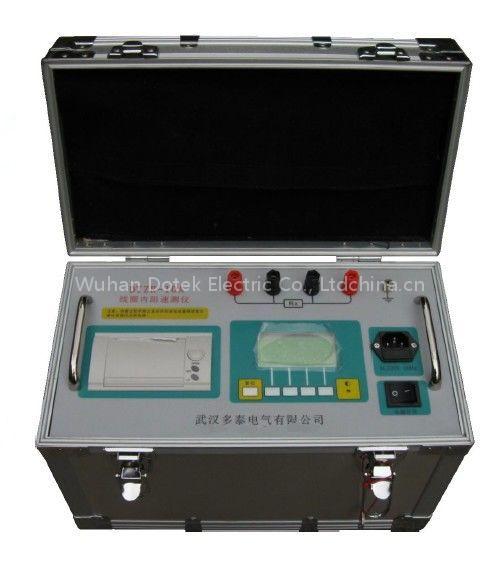

Winding Resistance Test Set

Features♦ Four leads measurement method to assure measuring accuracy.♦ Program-controlled current source to increase measuring speed.♦ Auto arc suppression circuit to ensure safety and reliability.♦ Auto/Manual measuring range selecting.♦ Auto saves measured data, max 255 records.♦ Auto calibration.♦ LCD screen, Menu operation.♦ Built-in Printer. Specifications (English version available)♦ Testing current: 1A, 2A, 3A, 5A, 10A, 20A, 40A, 50A♦ Measuring range: 1μΩ~20kΩ♦ Resolution: min 0.1μΩ♦ Measuring accuracy: 0.2%♦

Power supply: AC220V ± 10%♦ Ambient temperature: -5~40°C♦ Ambient humidity: RH
