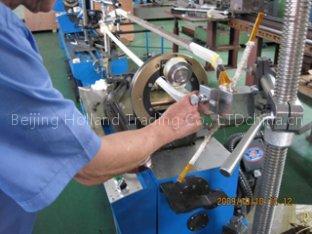

Wind Coil Taping Machine

Specifications:

1. Max. section 25×50mm², min. section 7×15mm², min. opening 130~140mm (according to the drawing from client), mica tape external dia. Ф65 mm, bore Ф39mm or Ф40mm.

2. Straight line length: 1100 (the taping length at the turning end part of the circular arc according to the drawing from client).

3. Double taping, half overlapping, tape width 25mm, pitch 6.25mm, 12.5mm each (also can supply the taping machine with 20mm tape).

4. Little tape only can single taping, the general 1 set of adjustable tension tape plate.

5. Contour cam gear rack, taping speed: 60~220r/m, frequency variable for speed adjustment, 6 times faster than manual, good quality.

6. Equipped with speed slowdown device at turning to reduce the taping speed to 1/2 of the normal  speed to improve the taping quality.
