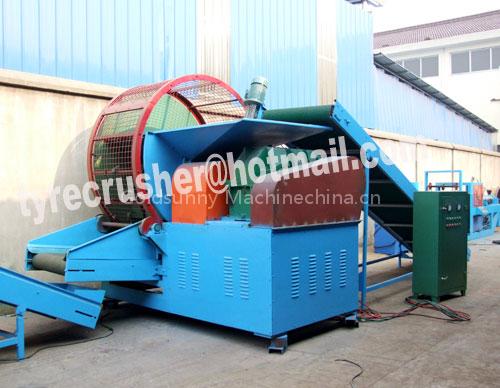

Whole Tire Crusher

This machine consists of motor, hydraulic system, drawing hook, drawing and main part, and so on. Its basic principle is: Driven hydraulic system and made the cylinder work by the motor to make the drawing hook linked the cylinders pull pole reciprocates motion.

Put the tire on the drawing mouth and jut the drawing hook out the drawing mouth to hook steel wire of tire bead, and then turn on the start button, Because of the strong pulling force of the cylinder, so can pull out the whole steel wire. Meanwhile the rubber part of tire is teared because of the drawing mouth block it.

Thus get the effect of separating Model 800power(kw) 5.5the greatest joumey of the cyclinder 800putt(T) 5reciprocate the speed(time/min) 1weight(kg) 600dimension(LxWxH) 2x0.5x1type Model 1200power(kw) 12the greatest joumey of the cyclinder 1200putt(T) 13reciprocate the speed(time/min) 1.5weight(kg) 1200dimension(LxWxH) 3x0.8x1
