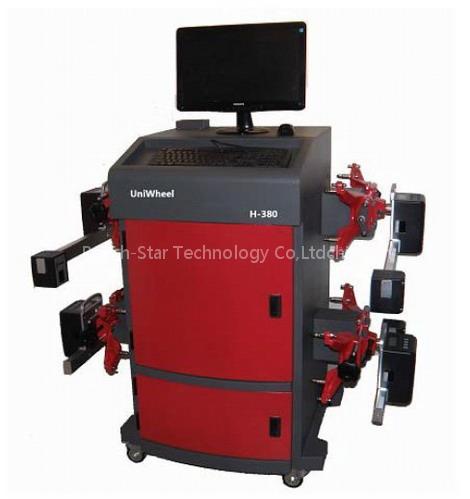

Wheel aligner

H-380 Professional high-end model
Voice navigation 19 inch LCD screen
sensor configuration
PC-Free Measurement Mode
remote control
LCD digital display of battery capability,electronic horizeon, angle measurement
LED toe camber adjusting reminding
8 beam Anti-distrubance full loop measurement
Sensor self-testing, individual changeable without calibration
Availabel Wheel align parameter measurement
Front wheel Toe, Camber, Kingpin caster, Kingpin SAI,
hrust Angle, maxumim turn angle
Wheelbase,track,setback,offset

special measurement program
Any hang lift measurement
Altimetry,counterweight
VAG toe constant value measurement
Intelligent measurement ultra-low chassis and refitted vehicles

conventional function

Switch measurement interface by one key
Calibrate parameters unit exchange
Animatiion Suspension adjustment guidance
User database
Eccentricity Compensation
Front wheel align measurement
Animation operation guidance

special function

fast measurement
Self-test function when the calibration value is incorrect.
the lift horizontal compensation
sensor working log
Voice Reminding system

Package

H-380 cabinet x1
Four-point centering wheel clip x4
Sensor x4
Computer x1
19 Inch LCD screen X1
Ink-jet printer x1
Mechanical turntable x2
Steering wheel fixed bracket x1
Braking fixed bracket x1
Usermanual x1
