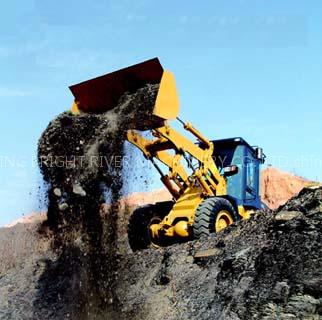

Wheel Loader 835

Features Overall data Operating Weight 11200kg Bucker capacity 1.7m³ Rated Load 3000kg Maximum traction 100.9kN Grade ability 30° Breakout force (tilt cylinder) 93.55kN Static Tipping Load ( full 38°turn) 86kN Engine Weichai TD226B-6 Rated power 92kW(165hp) Peak Torque Displacement 6.234L Cylinders-Bore X Stroke 6-105 X 120mm Transmission BS305 Type; counter shaft power shift, semi-automatic electrical hydraulic shifting control Converter: single-stage, single-phase, three Elements torque converter Travel Speeds(km/h) Gear1 Gear2 Forward 0~11 0~36 Reverse 0~15 Steering Articulated frame, full hydraulic power with flow amplified system, full-flow filtering Axles conventional axles Brakes Service brakes: Capliper discs, air hydraulic actuated on all four wheel Parking brakes: Shoe-brake, applies by manually control Emergency brakes: Using parking brake, the brake will automatically/manually apply.

Equipped with braking lowpressure warning Hydraulic system Relief valve setting 18Mpa Hydraulic cycle time, rated load in bucket (in second) Raise Dump Lower(empty, float down) Total 4.6 1.1 3.3 9.0 Capacities Fuel tank 150L Hydraulic tank 150L Crankcase 15L Transmission 45L Different & final drivers-front 8L Different & final drivers-rear 18L Tires Equipment ●Standard â–²Optional ●Weichai TD226B-6 engine ● pilot control ●Automatic bucket leveler ●lift kick-out system ●ROPS/FOPS cab ●Air conditioner ●General bucket ●back-up alarm â–²Log fork â–²Rock bucket â–²Ore bucket â–²Wheel loader scale â–²2.0m³ light material bucket â–²Automatic single lever with pilot control â–²Centralized automatic lubricating system Specification Dimensions with Bucket A:Height to top of cab and canopy 3238mm B:Ground clearance 312mm C:Length from centerline of front axle 1300mm D:Wheelbase 2870mm E:Overall length 6760mm F:Maximum rollback at full height 601º G:Bucket dump at full height 45º H:Dump reach 1080mm I:Maximum overall height 4588mm J:Hinge pin height at full lift 3721mm K:Dump height 2911mm L:Maximum rollback at ground 40º M:Hinge pin height at carry position 465mm N:Maximum digging depth 40mm O:Width over tires 2300mm P:Tread width 1850mm Q:Turning radius outside tires 5140mm R:Maximum steering angle(each side) 40º S:Bucket width 2456mm T:Turning radius outside bucket 5651 mm
