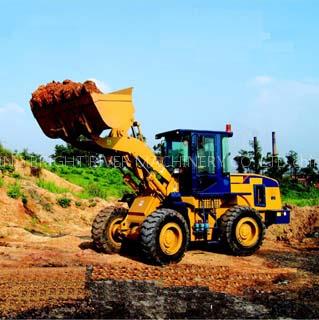

Wheel Loader 835RR

Features Overall data Operating Weight 11600kg Bucker capacity 1.7m³ Rated Load 3000kg Maximum traction 100+3kN Grade ability 29° Breakout force (tilt cylinder) 93.5+3kN Static Tipping Load ( full 38°turn) 55kN Engine CUMMINS QSB5.9-C130 Rated power 97kW(130hp) Peak Torque Displacement 5.9L Cylinders-Bore X Stroke 6-102 X 120mm Transmission ZF 4WG158 Type; counter shaft power shift, semi-automatic electrical hydraulic shifting control Converter: single-stage, single-phase, three Elements torque converter Travel Speeds(km/h) Gear1 Gear2 Gear3 Gear4 Forward 0~6.6 0~12 0~25.6 0~37 Reverse 0~6.6 0~12 0~25.6 Steering Articulated frame, full hydraulic power with flow amplified system, full-flow filtering Axles Self-locking differentials, wet multi-disc brakes Brakes Full hydraulic wet-disc braking Service brakes: All wheels use wet multi-disc brakes Parking brakes: Shoe-type brake, operator applies electronic control Emergency brakes: Using parking brake, the brake willautomatically/manually apply.

Equipped with braking lowpressure warningand flameout emergency braking warning Hydraulic system Relief valve setting 16Mpa Hydraulic cycle time, rated load in bucket (in second) Raise Dump Lower(empty, float down) Total 4.8 1.1 2.9 8.8 Capacities Fuel tank 200L Hydraulic tank 150L Crankcase 12L Transmission 40L Different & final drivers-front 28L Different & final drivers-rear 28L Tires 17.5-25 Equipment ●Standard â–²Optional ●CUMMINS QSB5.9-C130 engine ● pilot control ●ZF 4WG158 transmission ●Automatic bucket leveler ●lift kick-out system ●ROPS/FOPS cab ●Air conditioner ●General bucket ●back-up alarm ●Bias ply tires â–²Side dump â–²Log fork â–²Rock bucket â–²Ore bucket â–²Wheel loader scale â–²Automatic single lever with pilot control â–²Centralized automatic lubricating system â–²Radial ply tubeless tires Specification Dimensions with Bucket A:Height to top of cab and canopy 3260()30mm B:Ground clearance 312()30mm C:Length from centerline of front axle 1300mm D:Wheelbase 2800mm E:Overall length 6940()30mm F:Maximum rollback at full height 60º G:Bucket dump at full height 45º H:Dump reach 1080()30mm I:Maximum overall height 4888mm J:Hinge pin height at full lift 3721mm K:Dump height 2911()30mm L:Maximum rollback at ground 40º M:Hinge pin height at carry position 465mm N:Maximum digging depth 35mm O:Width over tires 2300()50mm P:Tread width 1850()20mm Q:Turning radius outside tires 4735mm R:Maximum steering angle(each side) 40º S:Bucket width 2456()10mm T:Turning radius outside bucket 5618 mm
