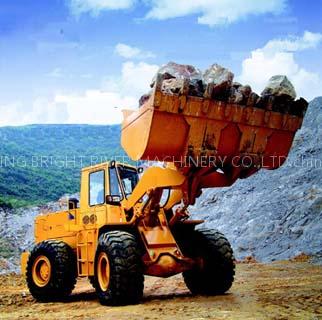

Wheel Loader 50x

Features Engine Model WD615 67G3-36 D6114ZGB Type Water-cooled, I-arrangement, direct injection, turbocharger, 4stroke diesel engine Number of cylinder 6 6 Bore’s stroke 126 X 130mm 114 X 135mm Displacement 9.726L 8.27L Rated power 162KW(220hp) 155KW(210hp) Rated turn speed 2200r/min 2200r/min Max. torque Fuel consumption 231g/Kw.h 222g/Kw.h Starting motor 24V, 7.5KW 24V, 7.5KW Alternator 0.75KW 1KW Governor Centrifugal, all speed governor Cooling system Forced circulation by centrifugal pumo, pusher type fan Driving system Torque converter Type Double Turbine Torque ratio 4 Transmission Type Planetary type, clutch with multiple discs, full power shift, semi-automatic Pressure of transmission 1.1~1.5Mpa Driving axle Major speed reducer Type Spiral bevel,1-stage reduction Speed ratio 4.625 Speed reduction on wheel Type 1-stage planetary reduction Speed ratio 4.875 Speed (km/h) Gear 1 Gear2 Forward 0-10 0-34 Reverse 0-13 Steering Type Articulated frame, full hydraulic power with flow amplified System, full-flow filtering Steering angle ()35° Setting pressure 12Mpa Flow 135.4L/ Brake Driving brake Caliper discs, air-hydraulic actuated on all four wheel Parking brake Shoes-brake, applied by manual/air control Emergent brake Using parking brake, applied by air pressure control Maximum oil pressure 12.3Mpa Air pressure 0.71-0.784Mpa Hydraulic system Working pump CBZb3160 Displacement of working pump 160ml/r Control valve FPT32 Type Double valve Setting pressure 17.0Mpa Hydraulic cycle tirn(s) Raise Dump Lower9empty, float down) Total 6.5 1.5 3.5 11.5 ZL50C with fork or side bucket Specifications fork Side bucket Overall length 8380mm 8134mm Overall width 2750mm 2950mm Overall height 3480mm 3440mm Dump height 2550mm Obverse dump:2820mm Side dump:3980mm Dump reach 1620mm Obverse dump:1173mm Rated load 5000kg 4600kg Bucket diameter 2.5m² Clipping diameter 1000mm(log fork)/380mm(pipe fork) Operating weight 16500kg 17000kg Equipment standard optional WD6156G3-36 D6114ZGB Liugong transmission Automatic bucket leveler Liugong Axles Lift kick-out system General cab ROPS/FOPS cab Air conditioner Pilot control 3.0m³ General bucket 3.3m³ light material bucket 23.5-25 tyres 2.2m³ ore bucket 1.8m³ ore bucket Side-dump bucker Log forl 4.0m³ material bucket Specifications Dimensions with Bucket A:Height to top of cab and canopy 3483mm B:Ground clearance 485mm C:Machine center point to rear axle 2227mm D:Wheelbase 3427mm E:Overall length 8034mm F:Maximum rollback at full height 58º G:Bucket dump at full height 45º H:Dump reach 1200mm I:Maximum overall height 5070mm J:Hinge pin height at full lift 4021mm K:Dump height 2970mm L:Maximum rollback at ground 41.5º M:Hinge pin height at carry position 500mm N:Maximum digging depth 60mm O:Width over tires 2750mm P:Tread width 2150mm Q:Turning radius outside tires 6450mm R:Maximum steering angle(each side) 35º S:Bucket width 2976mm T:Turning radius outside bucket 7720 mm
