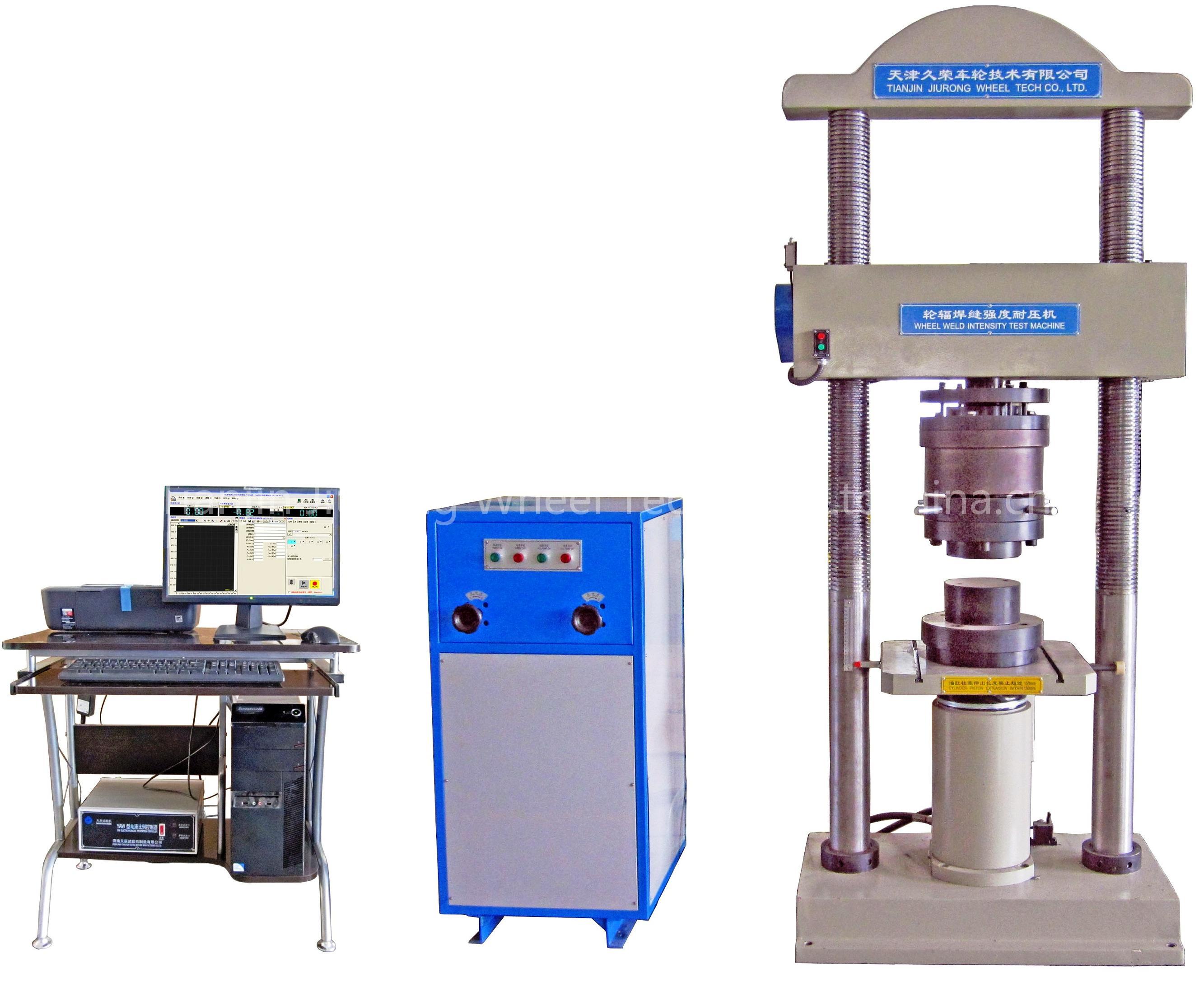

Wheel Disc Welding Seam Strength Test Machine

It is used for testing the anti-press strength of automobile wheel and its structural component.

Machine structure: Vertical machine frame Max. force value: 600 kN Force value accuracy:±1% R.O Force value segment: 10%,20%,50%,100% Effective force range: 4% ~ 100% F.S Piston stroke: 150 mm Hydraulic source pressure: 30 Mpa Displacement accuracy (Relative to displayed value): ±1% Piston moving speed: 0 ~ 35 mm/min Beam moving speed: 0 ~ 240 mm/min Test space (Between spherical press plate & lower press plate): 0 ~ 1000 mm Hydraulic source dimension: about L550 mm × W550 mm × H1150 mm Machine dimension: L1050 mm × W600 mm × H2250 mm Press plate size: φ 200 Net distance between two column: not (center distance): 600 mm Machine total weight: about 4 t
