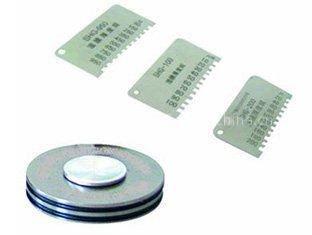

Wet Film Thickness Gauges(Comb-shape)

The Wet Film Thickness Gauges are made of a comb-shaped design with precision cut gaps to determine the coating thickness by placing vertically onto a wet coated substrate. it is a corrosion-resistant stainless steel with a hole at the top comer so that a string(not supply)can be attached for hooking

All Wet Film Thickness Gauges come standard with 10 gaps with inscriptions of the thickness at the side of each is recommended to replace a new gauge if there are chips, crack or uneven at the gap(s)of the gauge

Main Technical Parameters

Type: SHG~100 10-100µm(µm)
SHG~200 20-200µm(µm)
SHG~700 250~700µm(µm)
SHG~750 50~950µm(µm)

Dimensions(for 1&2):65(L)×36(B)×1.5(T)mm

(for 3&4):65(L)×43(B)×1.5(T)mm

Weight:approx.22g(for 1&2), 33g(for 3&4)
