Welding Fume Extractor -WFE

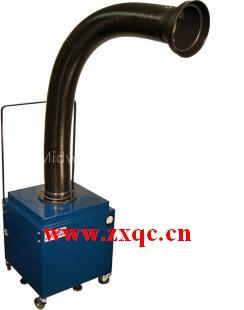

Welding Fume Extractor -WFE Model:MWSS-400-WFE

The patented fan/filter assembly provides strong suction at the inlet delivering source capture for all types of operations. The modular design and sturdy construction make it a solid solution for many applications.

All units combine small size, quiet operation, convenient mobility, and high efficiency filtration to provide an excellent choice for applications where clean air is desired.

Typical Uses * Welding Fume Control * Solder Fume Removal * Manufacturing Areas * Laboratory * Chemical Fume Control * Dust & Smoke Removal * Pharmaceutical * Medical * Laser Applications * Clean Rooms SPECIFICATIONS Cabinet Dimensions 20" D x 20" W x 17.25" H Arm Dimensions 6" D x 68" L fire retardant flex hose Weight 50 lbs to 100 lbs.

(Depends on Filter Media Used) Cabinet Material 16 ga. carbon steel Motor Fractional Horsepower Air Volume Variable Speed Control Standard on 115V 700 CFM High, Down to 50 CFM Low On/Off Toggle Switch Standard on 220V Electrical 115/1/60, 2.5 amps 220/1/50, 1.5 amps Sound Level Approx. 60 dba 3&#39 Warranty Limited two-year warranty Patented Design U.S.

PATENT #5,843,197 U.S. PATENT #11/956046 Pending All specifications are nominal and subject to change without notice. Not intended for explosive or highly flammable applications. (i.e. when the Lower Flammability Limit is exceeded for any given chemical).

ACCESSORIES Magnehelic Gage Variable Speed Controller Quick Change Pre-Filter We offers an exclusive line of top quality air cleaners for a variety of applications. For more information on this and other products call us for more details. nbsp;
