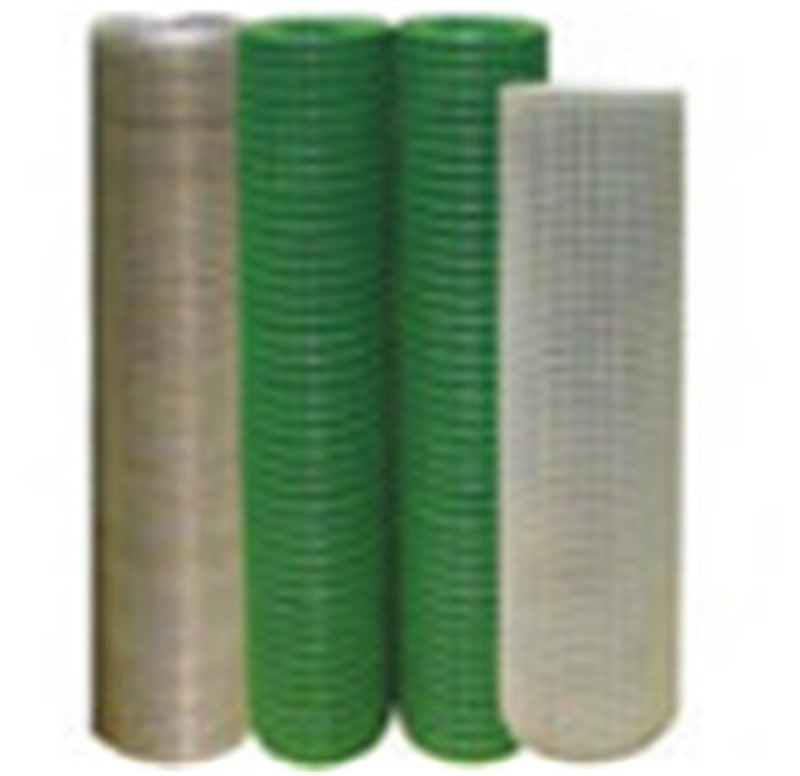

Welded wire mesh

Welded wire mesh Welded wire mesh is made of high-quality iron wire through automatic process and sophisticated welding technique, laid horizontally and verically, individually welded at every intersection.The products is level and flat.

Welded wire mesh is extensively used in industry and agriculture construction,transportation and mining for all such purposes as poultry houses,egg baskets,rnway enclosures, draining rack,fruit drying screen,fence.

(Standard Mesh) in 30M roll,width of 0.5M-1.8M Mesh Wire Gauge (BWG) Inch mm 1/4’’*1/4’’ 6.4mm*6.4mm 22,23,24 3/8’’*3/8’’ 10.6mm*10.6mm 19,20,21,22 1/2’’*1/2’’ 12.7mm*12.7mm 16,17,18,19,20,21,22,23 5/8’’*5/8’’ 16mm*16mm 18,19,20,21 3/4’’*3/4’’ 19.1mm*19.1mm 16,17,18,19,20,21 1’’*1/2’’ 25.4mm*12.7mm 16,17,18,19,20,21 1-1/2’’*1-1/2’’ 38mm*38mm 14,15,16,17,18,19 1’’*2’’ 25.4mm*50.8mm 14,15,16 2’’*2’’ 50.8mm*50.8mm 22,23,24 1/4’’*1/4’’ 6.4mm*6.4mm 12,13,14,15,16

Assortments Available: Hot-dipped galvanised after welding Hot-dipped galvanized before welding Electric-galvanized after weaving Electric-galvanized before weaving Pvc coated In stainless steel Packing:1) Each Roll Packed in waterproof paper 2) each roll shrink Wrapped Other packing and Sizes available at customer’s requirements
