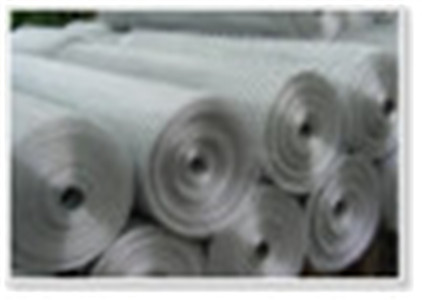

Welded wire mesh

Welded Wire Mesh Welded wire mesh, or welded mesh, is made from choice plain steel wire and stainless steel wire, which shows good corrosion-resistance and oxidation-resistance, widely used for poultry houses, egg baskets, runway enclosures, draining racks, porch guards, rat-proofing, safety guards on machines, animal and plant pens and shelves, etc.?

Varieties available according to processing and finish treatment: ?Welded wire mesh, galvanized before weaving ?Welded wire mesh, galvanized after weaving ?Welded wire mesh, thermal electroplated ?Welded wire mesh, PVC coated General roll width of Welded Mesh: 3', 4', 5', 6' Welded Mesh Length: 100' General specification of Welded Mesh: 3/4", 1/2", 1", 1/4", 3/8" General wire gauge (BWG): 14# to 23#

Mesh Size Wire Gauge Diameter In MM In Inch BWG No.

MM 6.4mm 1/4Inch BWG24-22 0.56mm- 0.71mm 9.5mm 3/8Inch BWG23-19 0.64mm - 1.07mm 12.7mm 1/2Inch BWG22-16 0.71mm - 1.65mm 19.1mm 3/4Inch BWG21-16 0.81mm - 1.65mm 25.4x 12.7mm 1 x 1/2Inch BWG21-16 0.81mm - 1.65mm 25.4mm 1Inch BWG21-14 0.81mm - 2.11mm 38.1mm 1 1/2Inch BWG19-14 1.07mm - 2.11mm 25.4 x 50.8mm 1 x 2Inch BWG17-14 1.47mm - 2.11mm 50.8mm 2Inch BWG16-12 1.65mm - 2.77mm
