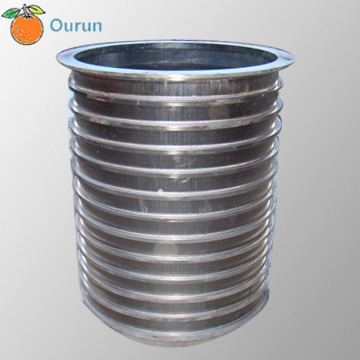

Wedge Wire Basket Slotted Pressure Screen Basket

Basket slotted pressure screen basket is made by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic wire screen machine. Each profile wire and support rod is welded by resistance welding, easily fit for pulp and paper industries for water clarification, cleaning, dewatering, pulp screening and fractionation, and other liquid/solid separation etc.

Material generally of stainless steel 304, 304L,316, 316L, 321 etc.

Characteristics 1) very precise slots for fine screening 2) high strength, all welded structure 3) non clogging slots 4) low maintenance 5) custom made

Technical parameter wire size 2.2X3.5mm,2.2X4.5mm Slot width 0.2mm-10.0mm screen diameter 200-1500mm screen height 200-6000mm

Packing They are wrapped with moisture-proof paper or other packing materials inside. The outer package should be wooden pallets or wooden cases.
