Quick answer
Wedge Anchor is a Fasteners product. Key specs — Brand: HLTH; Origin: Shandong; Price Term: FOB.
Product Description

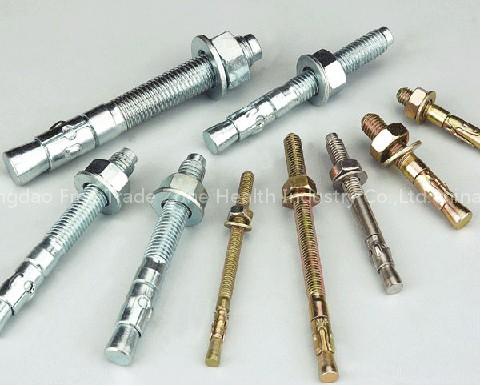

Artical:Wedge Anchor
Material:SS,Carbon Steel
Dia:M6-M20
Length:40mm-300mm
Finish:YZP,WZP,BZP,H.D.G
Packing:box/carton
Material:SS,Carbon Steel
Dia:M6-M20
Length:40mm-300mm
Finish:YZP,WZP,BZP,H.D.G
Packing:box/carton
Anchor Size (mm) | Max Fixture Thickness (mm) | Pull Out Loading (kgs) |
| M6×40 | 3 | 850 |
| M6×55 | 15 | 850 |
| M6×70 | 30 | 850 |
| M6×95 | 55 | 850 |
| M8×50 | 10 | 1150 |
| M8×65 | 20 | 1150 |
| M8×80 | 35 | 1150 |
| M8×95 | 50 | 1150 |
| M8×105 | 60 | 1150 |
| M8×120 | 75 | 1150 |
| M8×165 | 135 | 1150 |
| M10×65 | 15 | 1500 |
| M10×80 | 20 | 1500 |
| M10×90 | 30 | 1500 |
| M10×120 | 60 | 1500 |
| M10×130 | 70 | 1500 |
Anchor Size(mm) | Max Fixture Thickness(mm) | Pull Out Loading (kgs) |
| M12×80 | 20 | 2300 |
| M12×100 | 30 | 2300 |
| M12×110 | 40 | 2300 |
| M12×120 | 50 | 2300 |
| M12×150 | 80 | 2300 |
| M16×105 | 15 | 3400 |
| M16×140 | 40 | 3400 |
| M16×180 | 80 | 3400 |
| M16×220 | 120 | 3400 |
| M20×125 | 15 | 5400 |
| M20×160 | 40 | 5400 |
| M20×200 | 80 | 5400 |
| M20×300 | 180 | 5400 |
We could also supply the wedge anchors as per the customer's samples or drawings.
