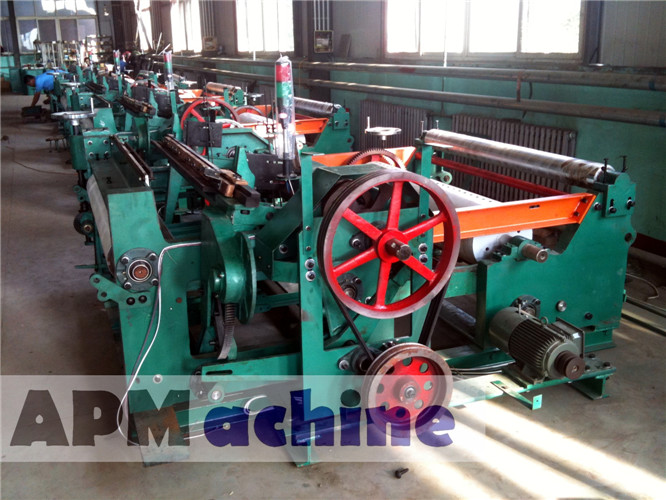

Weaving Wire Mesh Machine

Our machines mainly divided into Light type machine and Heavy type machine .Could produce wire diameter range from 0.03mm to 0.8mm and width 1300 – 1600 mm. Our quality Equipment jointed with Chinese Army manufacturer 3302 with Germany and Japanese technology. In recent years, our product are valued highly abroad and export to U.S.A, Europe and South East Asia over 60 countries etc.

1. The Machine adopts technique of shuttleless and straightaway weft leading, Automatic warp feeding and winding. Shedding are small and surfaces of woven screens are smooth. There is not any bright spot, bright trace and other defects on fine screens. 2. Lower center of the gravity, good stability, low noise and energy consumption, high efficiency. 3.

Rational design, simple construction, easy to operate and maintain .

Wire diameter（mm） 0.04-0.80 Mesh（mm） 10-400mm Max Mesh width（mm） 1300/1600 Weave type Plain and Twill Weaving speed/hour 75-78Times/minutes Rated voltage（v） 380/220 2.2KW weight（kg） 2800 Outside size(mm) 2600x2800x1200
