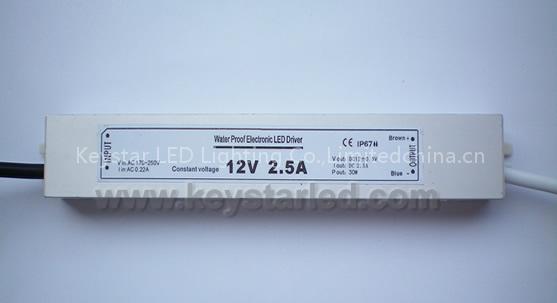

Waterproof LED Driver
Listing ID#10014684
CategoryLighting Transformers
Lighting Transformers

Waterproof LED Driver

Specifications

Origin
China (Mainland)
Request Quote
Quick answer

Waterproof LED Driver is a Lighting Transformers product. Key specs — Origin: China (Mainland).

Product Description

Product NameWaterproof LED Driver-60W

Specification :
Input voltage: 170 to 250 VAC /90130V AC
Input frequency: 47 to 63 Hz
Input current: 0.47A max 220VAC
Output Voltage: DC 24V /15V /12V /5V±0.5V
The Sum Output Current: 2.5A /4A /5A /12A
Max. Output Power: 60W
Protect the function: Overcurrent/Short circuit/Temperature Protection
Recover the mode: Recover after dis charge
Non-operating Temperature: -40~80
Operating temperature: -25~45
International Protection : IP67
Size : 175*50*67mm(Aluminum alloy)
Weight: 750g
Packing quantity: 8 pcses/box
Electric wire request: the wire of VDE, output with 4 groups 18#2C (300mm)
Attestation and certificate: CE
Characteristic
Universal Input
Several Protection Function
100% pour and envelop for waterproofness
inflaming retarding
Constant voltage

Item No.

Input

Output

Important parameter

Remark

voltage

frequency

current

Voltage

Current

Power

Size

Electric wire

Weight

Packing

certificate

0.75 squares electricity strand 200mmTemperature:-4080 Operating temperature:-2545 100% pour and envelop for waterproofness;inflaming retarding;Several Protection Function,Protect the function:Overcurrent/Short circuit/Temperature Protection;Recover the mode:Automatic instauration
CV-24020AAC90250V4763 Hz0.13A ,AC220VDC 24V±0.5VDC 0.83A20 W150g50pcsCE
CV-12020AAC90250V4763 Hz0.12A ,AC220VDC 12V±0.5VDC 1.67A20 W150g50pcsCE
CV-24030CAC170250V4763 Hz0.22A ,AC220VDC 24V±0.5VDC 1.25A30 W200*27*20mm250g50pcsCE
CV-12030C4763 Hz0.22A ,AC220VDC 12V±0.5VDC 2.5A30 W250g50pcsCE
CV-24060CAC170250V4763 Hz0.5A ,AC220VDC 24V±0.5VDC 2.5A60 W176*67*50mmthe wire of VDE,
output with 4 groups		800g24pcsCE
CV-15060CAC170250V4763 Hz0.5A ,AC220VDC 15V±0.5VDC 4.0A60 W800g24pcsCE
CV-12060CAC170250V4763 Hz0.5A ,AC220VDC 12V±0.5VDC 5.0A60 W800g24pcsCE
CV-24100CAC170250V4763 Hz0.8,AC220VDC 24V±0.5VDC 4.17A100 W228*120*64mmthe wire of VDE,
output with 4 groups 18#2C (300mm)
2400g5pcsCE
CV-12100CAC170250V4763 Hz0.7,AC220VDC 12V±0.5VDC 8.33A100 W2400g5pcsCE
CV-24150CAC170250V4763 Hz1.1A ,AC220VDC 24V±0.5VDC 6.25A150 W2400g5pcsCE
CV-12150CAC170250V4763 Hz1.1A ,AC220VDC 12V±0.5VDC 12.5A150 W2400g5pcsCE
VDE, output with 4 groups(500mm)
CV-24200CAC170250V50 Hz1.5A ,AC220VDC 24V±0.5VDC 8.33A200 W2400g5pcsCE
CV-12200CAC170250V50 Hz1.5A ,AC220VDC 12V±0.5VDC 16.7A200 W2400g5pcsCE
