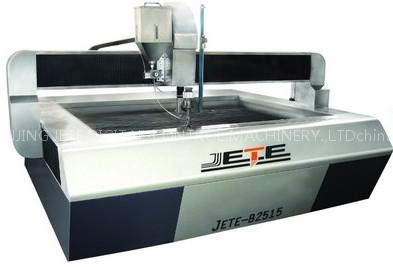

Waterjet Cutting Machine is a Business Services product. Key specs — Origin: China; Price Term: FOB.
Product Description
Model Processing size Pressure Main Motor Cutting precision Power supply Repeat positioning precision JETE-1313CL X-aixs:1300mm Y-axis:1300mm Z-axis:200mm 0-300Mpa 30HP/22KW 0.1mm 380V/50HZ 0.02mm Waterjet Cutting Platform -Structure: Bridge -Max.
Traverse speed: 10m/min -Cutting Precision: 0.1mm , Repeat positioning precision: 0.02mm -stainless steel body and material holding bars. -Full iron structure guarantee stable body of whole platform and motion system -Adjustable material holding bar for large material. -Imported zero clearance ball crew and line rail imported from Taiwan. -Taiwan made/ YASKAWA/SIEMENS AC servo (Ac Motor) -Auto concentrate lubricating system. -Abrasive tank capacity: 10KG -Automatic water draining system. -Air-control hi-pressure valve system.
UHP SYSTEM - Max.
Pressure: 300Mpa - Main motor: 30HP/22KW - Power supply: 380V/50Hz - Hi-pressure Intensifier : U.S JET made - Electronic Valve: U.S SUNNY. - Intelligent variable stroke hydraulic pump. - Manual-adjust pressure valve for different situation . - Imported "GL" and circulating water cooling system. - Water pump made in Italy. - High capacity hi-pressure water reservoir made of imported stainless steel. - Siemens PLC - Over heat protecting system Waterjet cutting head - KMT Cutting head. - Air-control hi-water valve - Abrasive Waterjet nozzle: ROCTEC brand - Waterjet cutting head -Orifice: 0.17mm /0.25mm/0.30mm/0.33mm/0.36mm Control System - CNCCONTROLLER made in Taiwan - GT (developed with Nanjing University) or WH(Shanghai) software, can read the drawings very fast. - CAD/CAM system Model :GT-card. - Compatible format: DXF, DWG, IGS, PRT, ASC, STL, NFL, STEP ,etc. - Can automatically transform, adjust and add special parameters according to the material, thickness and processing demand .Enlarge the database automatically. - Read CAD drawing and scan scan BWP format drawing, and programming automatically - Can generate the cutting path and optimize cutting order. - Can automatically add engage and retract line. - Automatically compensate the radius of the cutting head. - Breakpoint memory. - Can simulate the cutting process on the computer.
