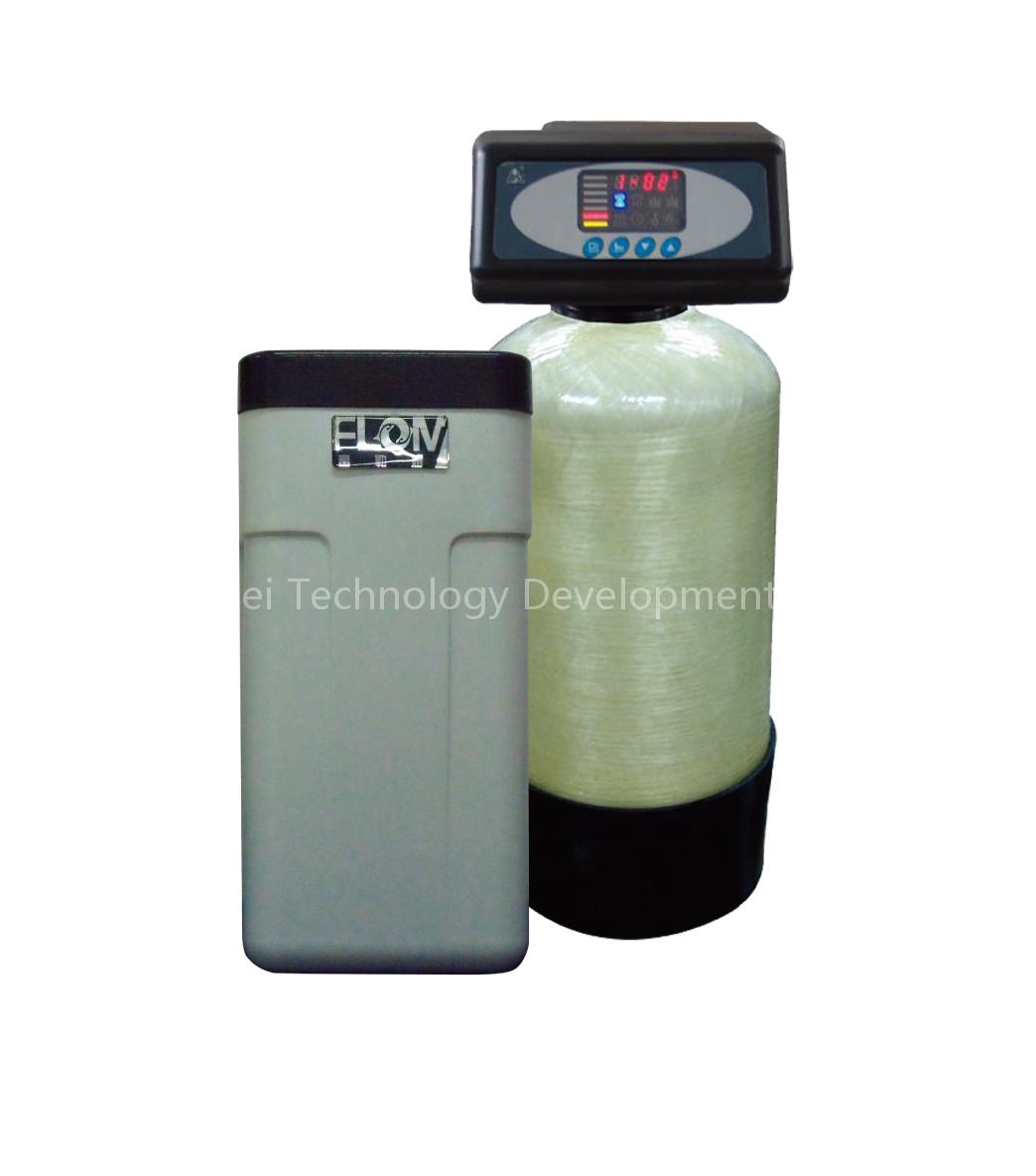

Water Softener

1. High degree of automation, stable conditions of supplying water, long servicelife, automatic in whole course, only needs labor to add salt in regular.

2. Disposition mode: single tank, two-tank, multi-tank, Control mode can be devided into time control type and flow control type (user can choose domestic manual,semi-automatic control plant), unit water throughput ranges from 0.05T/H to 500T/H

3. High effeciency, low energy-consumption, economic operating cost.
Water consumption: < 2% of water production
Salt consumption: regenerate one litre resin need about 160-240g salt, concrete salt consumption need to be determined according to user's raw water quality index.
Electronic consumption: 3W-40W, electronic consumption only comes up to 1% of general water softening plant because it does not need salt pump and use 220V general lighting power supply

4. Equipments structure is compact, occupy less foot-print, it need no special equipment basis, can be placed directly on flat floor.

5. It's simple and easy to install, debug and operate, with its control components stable function, allows users not to have worries later on. corrosion-resistant, anti-pollution, lead-free brass control valves. It is held internally non-poisonous PE plastic exchange tank of carbon steel corrosion, stainless steel pot or winded fiber-glass exchanging pot, PE plastic or fiber-glass salt box, all these is enough to guarantee the equipment corrosion, anti-pollution, non-toxic, tasteless and superior function of non-harm.

6. Application: boiler water, cycle cooling water, and preparation of air conditioning water, heat exchanger, Hotels and restaurants, foods and Chemical industry, Laundry and dyeing, Medical and health, etc.

Technical parameters:

Design condition: inlet water hardness<8mmol/L; outlet water hardness<0.03mmol/L; exchanging speed: 20-30m3/h
Power supply: 220V/50Hz, 110V/60Hz
Rated flow: 22-30T/H
Resin container: 4872 inch
Resin container size(D*H): 1200*1800mm
Resin filling quantity: 1350L
Salt tank(D*H): 2000*2000mm
Connecting pipe diameter: 3 inch
The device size: 1200*2300mm
