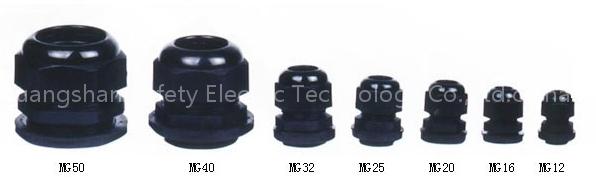

Water-Resistant Junction (MG50, MG40, MG32)

Colors: Grey, black, other colors are available on request.

Protection Degree: IP68 (used with Washer).

Operation Temperature: -40centigrades to +100centigrades, maximum instantaneous temperature up to 120centigrades.

Application: With special design and strong tensile strength, wide clamping range, they are used for fixing cables and provide the effecitve protection against dust, water, oil penetrating the electrical distribution box, electromechanical control panel, machinery and other instruments.

Sizes: MG12, MG16, MG20, MG25, MG32, MG40, MG50, MG63
Features:
1) Threaded entry: metric
2) Materials: parts A. C. E. F. are made of nylon 66 characterized by high fire-resistant with its flamability rating UL 94V-2, parts B and D are madet of EPDM neoprene
3) Colors: black and grey
4) Working temperature: -40~+100oC, the item can also endure 120º C instantly
5) Protection degree: IP68
6) Standard: IEC698
7) Installation: directly screw into hole of same thread size or fix with the spare locknut, with cable throng it inside hole, seal the sealing nut
