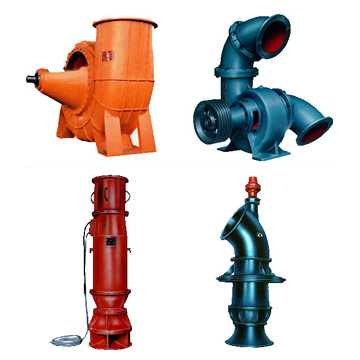

Water Pumps, Axial-Flow Pump, Mixed-Flow Pump

Specifications: 1) Axial-flow pumps have 5 series: a) ZLB(Q) vertical series i)

Capacity: 500 – 220,000m³/h ii) Head: 1.0-10m iii)

Diameter: 350 – 4,500mm b) ZWB(Q) horizontal series i)

Capacity: 500 – 220,000m³/h ii) Head: 1.0 - 10m iii)

Diameter: 700 – 3,000mm c) ZXB(Q) inclined series i)

Capacity: 500 – 220,000m³/h ii) Head: 1.0 - 10m iii)

Diameter: 350 – 4,500mm d) ZGB through flow series i)

Capacity: 1,500 – 126,000m³/h ii) Head: 2 - 5.5m iii)

Diameter: 700 – 3,000mm e) DP series single stage series i)

Capacity: 1,800 – 10,800m³/h ii) Head: 1.0 - 10m iii)

Diameter: 350 - 900mm 2) Mixed-flow pump have 6 series a) HW, HBC scroll-case series i)

Capacity: 70 - 6500m³/h ii) Head: 4 - 20m iii)

Diameter: 150 - 900mm b) HWG scroll-case series i)

Capacity: 1,130 – 1,200m³/h ii) Head: 3.5 - 15m iii)

Diameter: 150 - 900mm c) HL vertical series i)

Capacity: 1,400 – 100,000m³/h ii) Head: 5 - 18m iii)

Diameter: 300 – 3,000mm d) HD entrance bucket series i)

Capacity: 300 – 100,000m³/h ii) Head: 5 - 30m iii)

Diameter: 350 – 3,000mm e) HDS(X) single stage entrance bucket series i)

Capacity: 1,300 – 100,000m³/h ii) Head: 5 - 30m iii)

Diameter: 350 – 3,000mm f) HDC entrance bucket series (recycle pump) i)

Capacity:1.6 - 12m³/s ii) Head: 6 ~ 30m iii)

Diameter: 700 – 3,000mm 3) Centrifugal pumps have 6 series: a) IS single stage single suction series: i)

Capacity: 6.3 - 400m³/h ii) Head: 5 - 125m iii)

Diameter: 50 - 200mm b) IH single stage chemical series: i)

Capacity: 6.3 - 400m³/h ii) Head: 55 - 125m iii)

Diameter: 50 - 200mm c) S, SA, DS double suctions series i)

Capacity: 140 – 13,000m³/h ii) Head: 10 - 134m iii)

Diameter: 150 – 1,200mm d) D, DG multi-stage series i)

Capacity: 6.3 - 150m³/h ii) Head: 50 - 800m iii)

Diameter: 40 - 125mm e) GC multi-stage series ( boiler pump) i)

Capacity: 6 - 55m³/h ii) Head: 46 - 430m iii)

Diameter: 40 - 125mm f) DL vertical multi-stage series i)

Capacity: 6.3 - 150m³/h ii) Head: 50 - 400m iii)

Diameter:100 - 300mm 4) Submersible pumps have 5 series: a) QZ axial-flow series i)

Capacity: 500 – 40,000³/h ii) Head:1.0 - 10m iii)

Diameter: 350 – 1,600mm b) QHD entrance bucket mixed- flow series i)

Capacity: 300 – 14,000³/h ii) Head: 5 - 16m iii)

Diameter: 350 – 1,200mm c) QHL scroll-case mixed- flow series i)

Capacity: 500 – 14,000m³/h ii) Head: 4 - 20m iii)

Diameter: 300 – 1,200mm d) QW sewage pump series i)

Capacity: 18 - 4000³/h ii) Head: 5 - 60m iii)

Diameter: 50 - 600mm e) QJ deep-well pump series i)

Capacity: 5 - 360³/h ii) Head: 20 - 400m iii)

Diameter: 150 - 350mm
