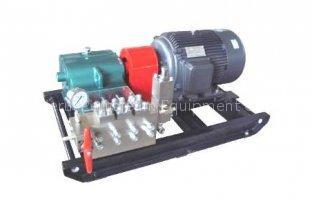

Water Injection pump

Model

Outlet pressure

（MPa）

Theoretical flow

（m³/h）

Motor power

（KW）

5200S-43/50

50

43

710

5200S-39/50

50

39

630

5200S-54/40

40

54

710

5200S-48/40

40

48

630

5200S-69/31.5

31.5

69

710

5200S-87/25

25

87

710

5200S-109/20

20

109

710

5200S-136/16

16

136

710

5200S-174/12.5

12.5

174

710

I=2.963

Rated speed 333

 r/min

Related pressure under corresponding rated pressure

（MPa ）

Plunger OD mm

Rated

Flow m3/h

30kw

37kw

45kw

55kw

75kw

90kw

30

3.69

24

30.5

36.6

46

61

70

32

4.182

21

27

32

41.5

55

60

35

5.0184

18

22

27

34

44

52

40

6.642

13.4

17

21

25.5

34

40

45

8.364

11

13.5

17

21

29

34

50

10.578

8.3
