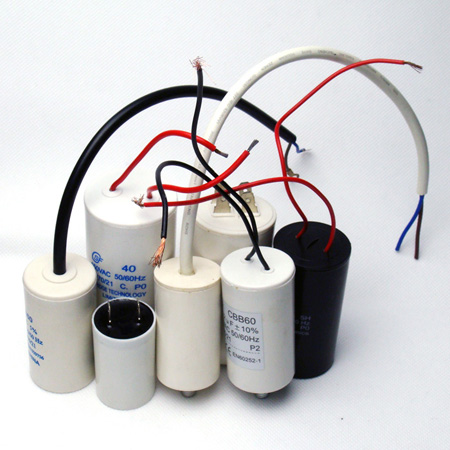

Washing Machine Capacitor
Specifications
- Origin
- China(mainland)
- Price Term
- EX-Work
- Payment Term
- T/T
Washing Machine Capacitor is a Passive Components product. Key specs — Origin: China(mainland); Price Term: EX-Work; Payment Term: T/T.
Product Description
1)very low loss at high frequency 2)small size small loss 3)high insulation resistance 4)long life, safety and stable 5)CBB60 Our company is a specialized manufacturer of capacitor and film for capacitor. Our products are high quality and inexpensive. Features: The capacitor takes heavy-edge metalized Al/Zn film as electrodes and dielectric.
The elements are tight winded by high-velocity winders and canned in aluminum cases. Refined castor oil is adopted as impregnation agent treated in vacuum and high temperature condition. Those make a more reliable performance and longer lifespan for a capacitor.
Meanwhile the second generation of mechanical anti-explosion design is selected as blast-proof secure measure for our capacitors. The reliability is more affirmatively enhanced.
Applications: Broadly applied to starting and running of AC single-phase motors at 50Hz (60Hz) frequency for family air conditioners and high power illuminators for the sake of power factor compensation.
Technical Specifications: Rated Capacitance: 1~60uf Rated Voltage: 250- 800VAC Standard:IEC 60252-1:2001 Climate type: 40/70/21, 40/85/21 Capacitance tolerance: ± 5% I.R:≥3000S (MΩ•μF) Dielectric dissipation factor: tgδ≤0.002 (50Hz~100Hz) Application requirements: Altitude: ≤2000m Residual voltage while loading: less than 10% of rated voltage.
Allowed maximum voltage: less than 1.1 times of rated voltage Permissible maximum current: less than 1.3 times of rated current.
Model CBB65 CBB60 CBB61 Material Metallized polypropylene Metallized polypropylene Metallized polypropylene Filling Oil Resin/Oil Resin Can Matel Plastic/Matel Plastic Capacitance range 3~120μF 1~70μF 1~40μF Voltage range 100~800VAC 220~450VAC 220~450VAC Security level P2/P1 P2/P1 P0 Operating Temperature -40°C~+70°C/85°C -40°C~+70°C/85°C -40°C~+70°C/85°C Anticipated operating life 3000h(Class C) 10000h(Class B) Standard GB 3667 IEC 60252 IEC 61048/61049 Note: 1, other capacitance and dimension serials can be specified in compliance with customer's request.
2, Terminal forms can be made in conformity to the requirements of agreements with customers.
