Listing ID#10137013
ModelTDS-100F1
CategoryAuto Meter
Quick answer

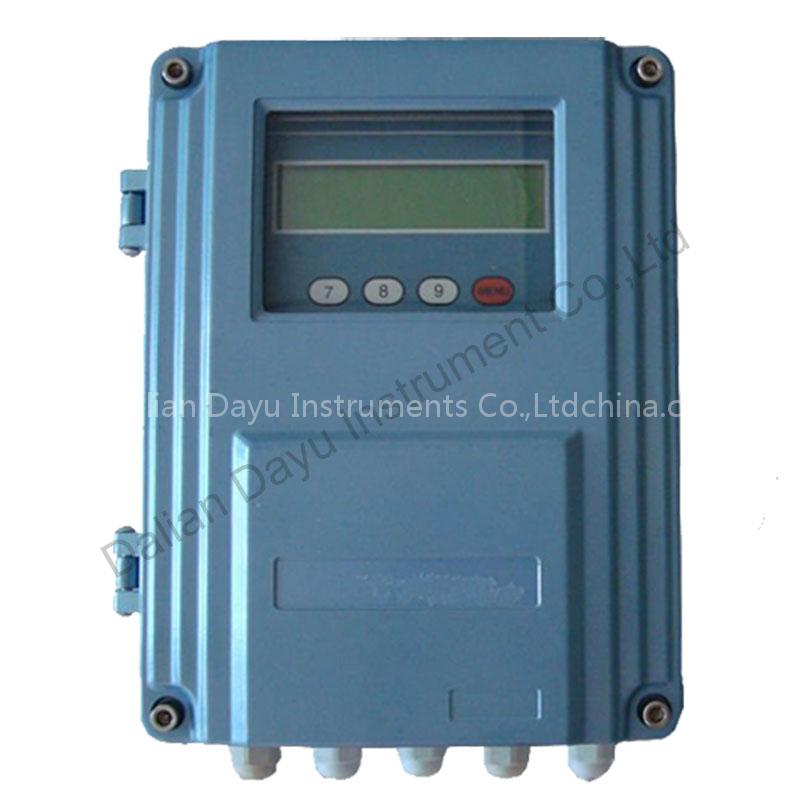

Wall Mounted Ultrasonic Flow Meter is a Auto Meter product. Key specs — Origin: China.
Product Description
TDS-100F is the separate fixed ultrasonic flowmeter, which suitable for a series of fluit flow measurement in different industry conditions. The main unit devided to the wall mounted type, module type, ecnomic type, panel mounted type, battery powered type and ex-proof type.
﹡Accuracy: better than 1%
﹡Repeatability: 0.2%
﹡Power Supply: 24VDC or 85~264VAC
﹡Totaliser: Positive/negative/net flow/heat totaliser
﹡Display: 2 Line LCD
﹡Input: 4~20mA/ PT platinum resisitance
﹡Output: Relay/RS485/Pulse/4~20mA/0~20mA
﹡Protocol: MODBUS
