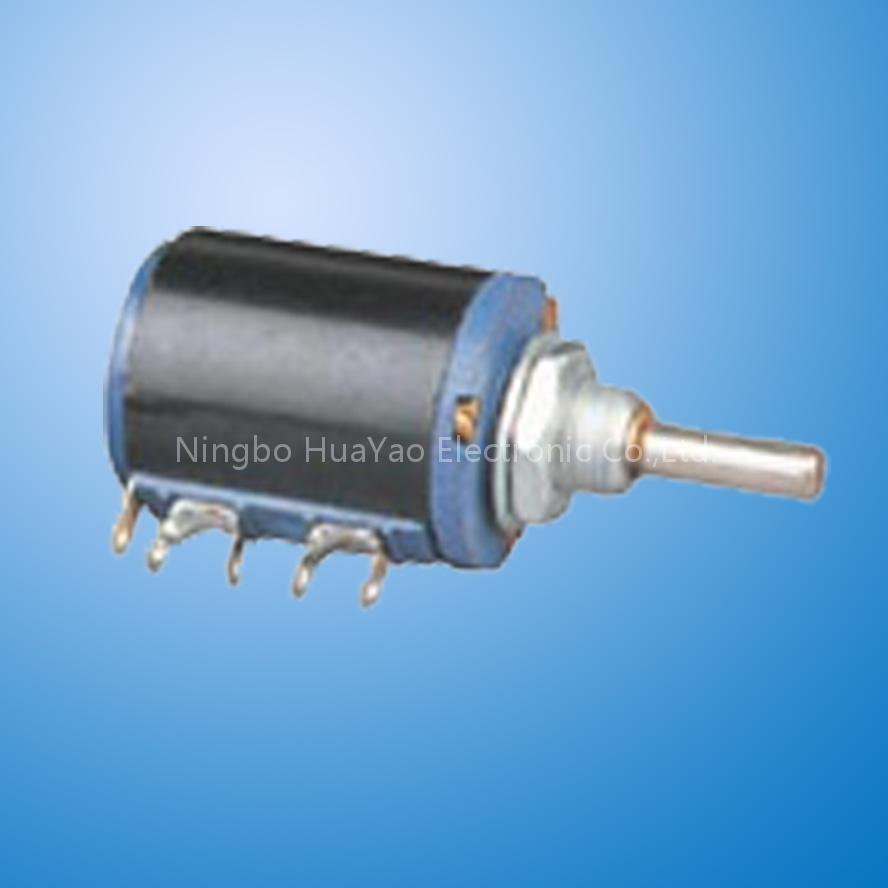

WXD3-12 Multi-turn potentiometer Wound

Model: WXD3-12

Main performance WXD3-12 WXD3-13-WXD7 - Rated power 1 W 2W 5W Maximum use of voltage 80 V DC 160V DC 200V DC Resistance of 100 Ω ---- 27 K ohms 100 Ω ---- 47 K ohms 100 Ω ---- 47 K ohms Resistance error of ± 2% ± 5% Linear accuracy of ± 0.5% ± 1% ± 0.5% ± 1% ± 0.1% ± 1% Rotating torque 2 - 10 mN.m 2 - 10mN.m 2 - 8mN.m Total machinery itinerary 1800 ° ± 10 ° 36 ° ± 10 ° 36 ° ± 10 ° Mechanical Durability 5,000 weeks Cycles
