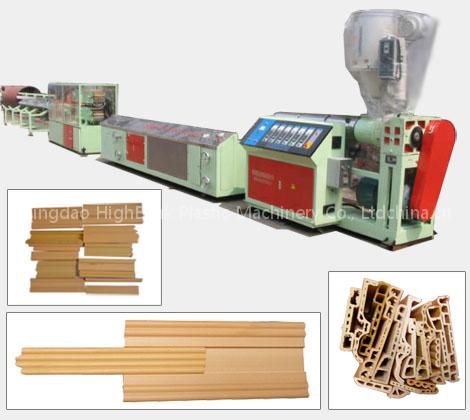

WPC Profile Production Line
Specifications
- Brand
- Highbank
- Origin
- China (Mainland)
WPC Profile Production Line is a Other Plastic & Rubber Machinery product. Key specs — Brand: Highbank; Origin: China (Mainland).
Product Description
WPC Profile Production Line1.WPCprofile production line issuitable for producing WPC profile, multi-hole cable duct (4-hole,6-hole, 7-hole, 9-hole option).
2.According to different profilesection and mould to choose different conical or parallel twin-screwextruder and provide relative vaccum sizing tank, haul-off, crossdirection saw cutter, stacker auxiliary equipment. outputcapacity of main extruder is from 150kg/h to 450kg/h for option.Haul-off machine is specially designed with particular up and downtechnology of our copmany, working stable, reliable and heavy dutyforce.
4.Vacuum sizing tank having particular dig eddy flowcooling system for cooling and sizing easy for high speed extrudingnecessary . The action of cross direction saw cutter keepingsynchronous with haul-off controled by import PLC controller,reasonable design, running stable, auto-fixed length cutting, assembledswarf suction device.
5.According to different mould, the vacuumsizing tank could be provided of 4m, 6m, 8m, 11m models, and providedparallel twin screw extruder for high speed extruding. 6.It`spossible to produce various colors profile, PVC profile extruding inhigh speed, various kind of PVC multi-hole cable duct.
