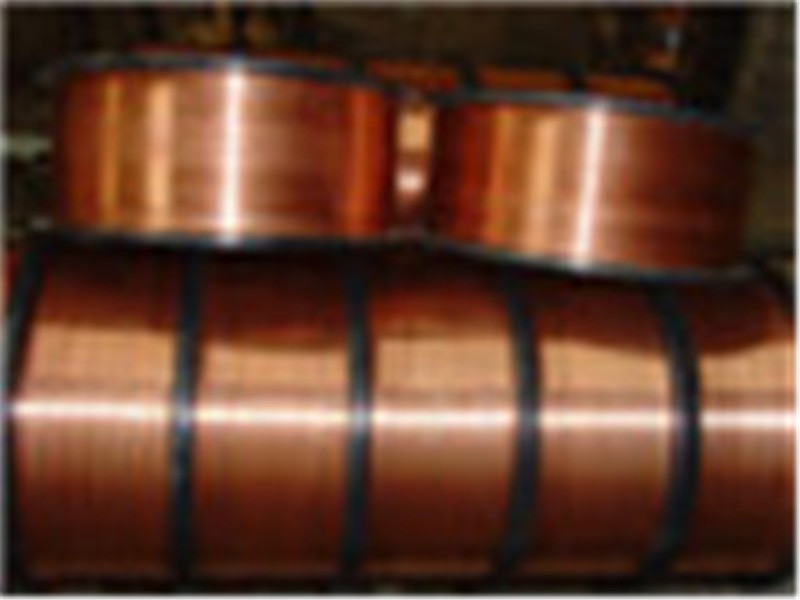

WELDING WIRE

WELDING WIRE

MIG/MAG WIRE ER70S-6 For welding low carbon and high strength steel structures of 500Mpa.80%Ar+20%CO2

Packing gauges 0.8mm-1.6mm spool 100mm 200mm 270mm 300mm Net weight 1kg, 5kg, 15kg, 20kg

Typical Chemical Analysis C Mn Si P S Cr Ni Cu 0.06-0.15 1.40-1.85 0.80-1.15 ≤0.025 ≤0.035 - - ≤0.50

Mechanical properties of deposited metal Yield Strength Tensile Strength Elongation Charpy-V Akv ≥420 ≥500 ≥22 ≥27(-29)

MIG/MAG Wire ER70S-3

For welding carbon steel and low-alloy steel structures. Shield gas:80%Ar+20%CO2

Packing Gauges 0.8mm-1.6mm Spool 100mm 200mm 300mm Net weight 1kg 5kg 15kg 20kg

Typical Chemical Analysis C Si P S Cr Ni Cu 0.06-0.15 0.45-0.75 ≤0.025 ≤0.035 - - ≤0.50

Mechanical properties of deposited Yield Strength Elongation Charpy-V AKV ≥420 ≥22 ≥27(-18)
