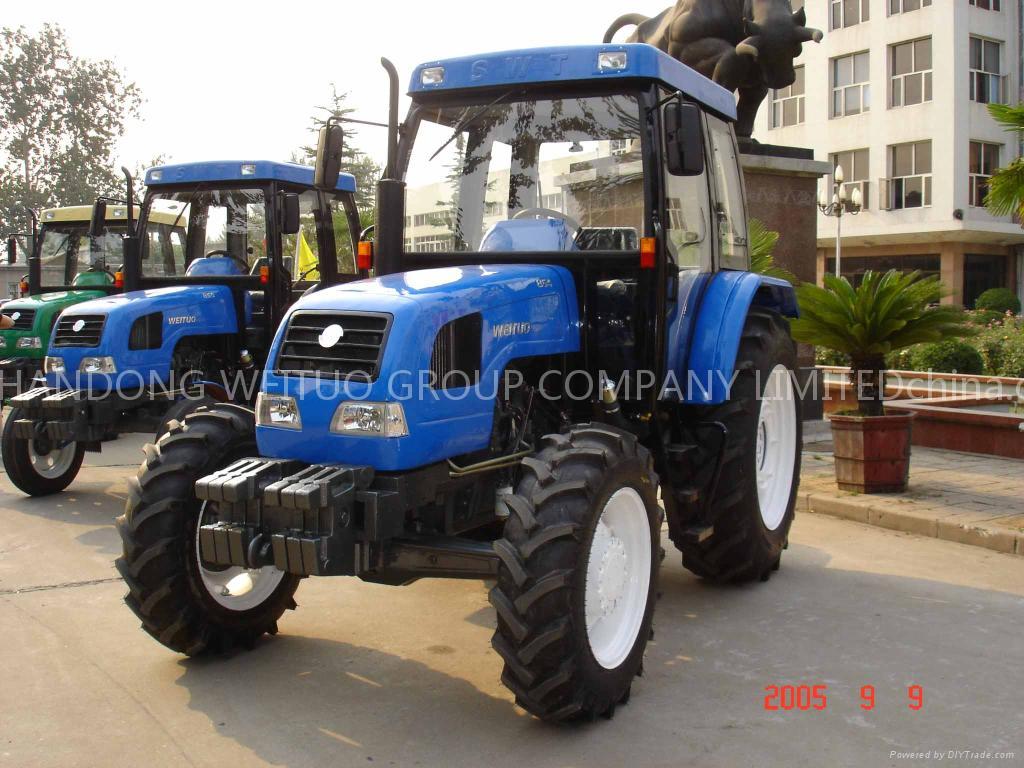

WEITUO SWT854-954 TRACTOR is a Other Farm Machines product. Key specs — Origin: SHANDONG WEIFANG,CHINA.
Product Description
Model SWT854-954 series tractor is in top position among the same industry in China and its matched power is R4105T diesel engine which power is 85/88hp. This tractor adopts fully hydraulic steering and hydraulic braking system. Its hydraulic suspension adopts catalogue II, tri-point, synthetic draft and position control. Joggling sleeve is equipped for its gearing shifting. Independently operated two stage clutch, reasonable shift gears (8 forward shifts and 2 reverse shifts), two rev. PTO according with international standard, its whole suspended, independent and combined airproof cab and adjustable tread are equipped with it. It is not only suitable for various field work, transportation and fixed tasks, but also for muddy fieldwork and engineering tasks. Model SWT-854-884as four wheel drive tractor is designed by installing a front drive axle on Model SWT850-950. Its traction is improved on a large scale and is more suitable to mountain areas and muddy roads.
Main Technical Specifications
Model
SWT854
SWT884
SWT904
SWT924
Type
4*4 wheeled type4WD
Main Dimensions of Tractor (mm)
Lenth
4430
Width
2030(Wheel base1600)
Height
2760
Tread
2395
Wheel base
Front wheel
1650
Rear wheel
1600-2000 (with 4 steps extension, each space 100mm)
Min.Ground Clearance
385
Radius of turning circle (mm)
4900
±200
Structure mass(kg)
3600
Tyre
Front tyre
11.2-24
Rear tyre
16.9-34
Clutch
Dry-friction. Single Plate. Constant Engagement. Independent Operated Dual-action
Steering
Hydraulic Steering
Gearbox
Shifts
8F+2R shift
Speed(Km/h)
2.613-33.68
Hydraulic equipment
1.Horizontal single oil tank,Draft & position-responsive control, Top-link sensing
2.Double vertical oil tanks, power lifting up & down system
Suspension
Post-positioned Tri-point Suspension Catalogue II
PTO shaft
Tyre & rev.
Independent 540/1000 or 740/1000
Spline
â… 35 Rectangle Spline with 6 teeth,â… 38 Rectangle Spline with 8 teeth,â… 48 Rectangle Spline with 8 teeth, II 35 involute Spline with 21 teeth
Working equipment
Hydraulic output (option)
One Plate with Two Output Connectors or Two Plate with Four Output Connectors(matching with hydraulic equipment 1)
Trailer brake (option)
Air brake
Engine
Model
R4105ZT
R4110T
Type
4-cylinder,vertical,water cooled,4-stroke and direct injection
Rated rev.(r/min)
2200
2300
Rated power(kW)
62.5
65
66.2
68
Fuel
Diesel
Structure and specification are subject to change without notice.
