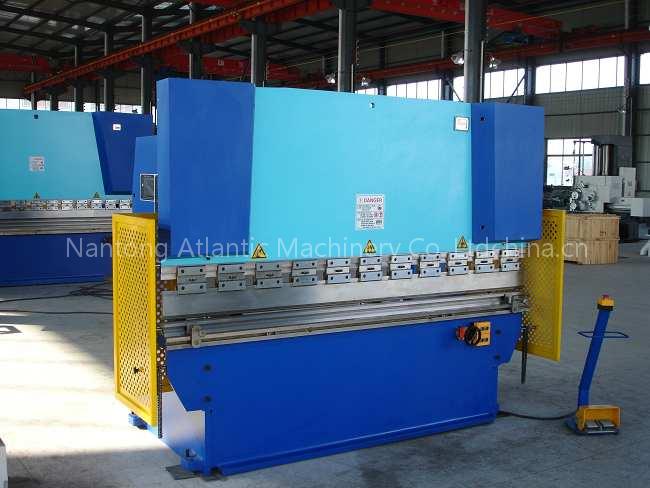

WC67Y press brake machine
Specifications
- Brand
- WSD
- Origin
- Haian,China
WC67Y press brake machine is a Other Farm Machines product. Key specs — Brand: WSD; Origin: Haian,China.
Product Description
Press brake-Hydraulic press brake
Product Description
I. Total-steel-welded construction is designed of full strength and rigidity with hydraulic upper drive.
II. Function of swift up and pressurization as well as swift return and pressure relief.
III. Ram synchronization adopts device of torque shaft and gauge block.
IV. Motorized adjustment of ram stroke and backgauge position, manual fine adjustment with numerical display.
V. Upper die adopts the slanted flexible compensation device.
VI. Large-scale worktable adopts hydraulic flexible compensation device for automatic compensation to bending-caused flexibility.
Models we did export before
| Model | Pressurekn | Length of work table mm | Distance of both pole mm | Depth of groove mm | Stroke mm | Maximum height between work table and ram mm | Main motor kw | Weight kg | Dimension (LxWxH) mm |
| WC67Y-40/2200 | 400 | 2200 | 1775 | 220 | 80 | 300 | 4 | 2500 | 2600x1100x1920 |
| WC67Y-40/2500 | 400 | 2500 | 1925 | 220 | 80 | 300 | 4 | 3000 | 2650x1100x1950 |
| WC67Y-50/2500 | 500 | 2500 | 2015 | 220 | 100 | 340 | 4 | 3750 | 2650x1250x2100 |
| WC67Y-63/2500 | 630 | 2500 | 2015 | 250 | 100 | 340 | 5.5 | 4300 | 2650x1300x2200 |
| WC67Y-80/2500 | 800 | 2500 | 2010 | 250 | 120 | 380 | 5.5 | 5200 | 2560x1350x2250 |
| WC67Y-80/3200 | 800 | 3200 | 2510 | 250 | 120 | 380 | 5.5 | 6000 | 3260x1350x2280 |
| WC67Y-100/2500 | 1000 | 2500 | 2050 | 320 | 150 | 420 | 7.5 | 6700 | 2550x1360x2270 |
| WC67Y-100/3200 | 1000 | 3200 | 2550 | 320 | 150 | 420 | 7.5 | 7200 | 3260x1365x2520 |
| WC67Y-100/4000 | 1000 | 4000 | 3050 | 320 | 150 | 420 | 7.5 | 8500 | 4060x1365x2720 |
| WC67Y-125/3200 | 1250 | 3200 | 2550 | 320 | 150 | 420 | 7.5 | 7800 | 3260x1465x2600 |
| WC67Y-125/4000 | 1250 | 4000 | 3050 | 320 | 150 | 420 | 7.5 | 9000 | 4060x1460x2800 |
| WC67Y-160/3200 | 1600 | 3200 | 2590 | 320 | 200 | 475 | 11 | 10500 | 3260x1580x2775 |
| WC67Y-160/4000 | 1600 | 4000 | 3040 | 320 | 200 | 475 | 11 | 12500 | 4060x1580x2925 |
| WC67Y-160/6000 | 2000 | 6000 | 4800 | 320 | 200 | 480 | 11 | 19500 | 6060x1580x3480 |
| WC67Y-200/3200 | 2000 | 3200 | 2580 | 320 | 200 | 475 | 18.5 | 13200 | 3260x1650x2800 |
| WC67Y-200/4000 | 2500 | 4000 | 3030 | 320 | 200 | 475 | 18.5 | 14800 | 4060x1640x3025 |
| WC67Y-250/4000 | 2500 | 4000 | 3130 | 400 | 250 | 530 | 18.5 | 19000 | 4060x1840x3150 |
| WC67Y-250/5000 | 3000 | 5000 | 3930 | 400 | 250 | 530 | 18.5 | 24000 | 5060x1840x3450 |
| WC67Y-300/3200 | 3000 | 3200 | 2530 | 400 | 250 | 580 | 18.5 | 18000 | 3300x2100x2980 |
| WC67Y-300/4000 | 3000 | 4000 | 3200 | 400 | 250 | 580 | 18.5 | 22000 | 4060x2040x3330 |
| WC67Y-300/6000 | 3000 | 6000 | 4720 | 400 | 250 | 580 | 18.5 | 32000 | 6060x1040x3830 |
| WC67Y-400/4000 | 4000 | 4000 | 3180 | 400 | 320 | 630 | 30 | 30000 | 4060x2220x3630 |
| WC67Y-400/6000 | 4000 | 6000 | 4700 | 400 | 320 | 630 | 30 | 45000 | 60602x2203x980 |
| WC67Y-500/6000 | 5000 | 6000 | 4600 | 500 | 320 | 70 | 30 | 55000 | 6080x2760x4000 |
| WC67Y-800/6000 | 8000 | 6000 | 4600 | 500 | 400 | 900 | 37 | 72000 | 6100x3250x4300 |
is a jointed venture with investment from HongKong and Germany,founded in 1969,which specialized in making machines for sheet shearing and bending ."Atlantic"brand machines have a good reputation at home and abroad ,machines produced here are with DIN standard.
Here we can ensure good quality and reasonable price machines for you .Welcome your arrival and looking forward to cooperating with you !
Our company details:
Product Trademark: | "Atlantic" |
Products we can supply | Shearing machinePress brakeRolling machine cut to length line |
Standard | Germany |
Productivity | 55 Sets per month |
Contact person | Xiaohua Shen (Mr.Allen Shen) |
0086-13584714567 |
